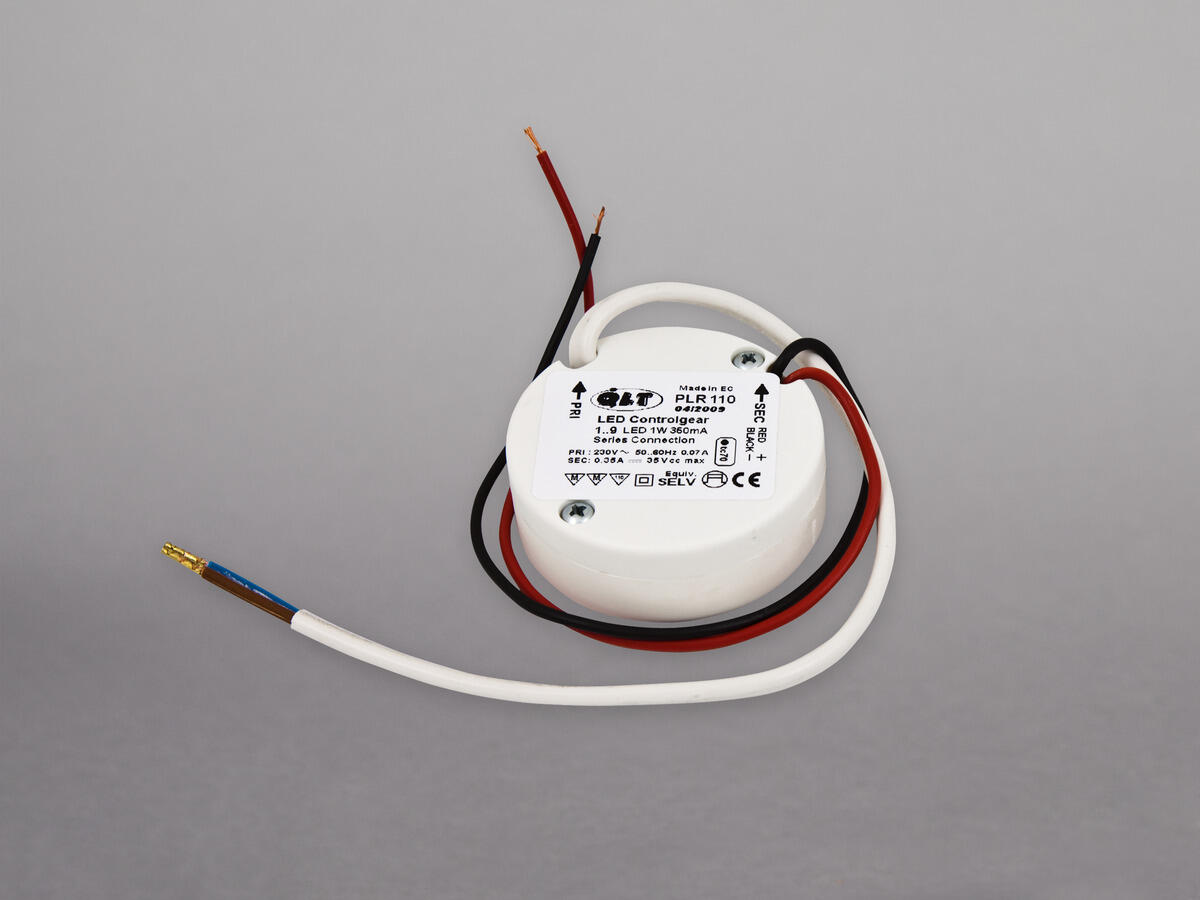

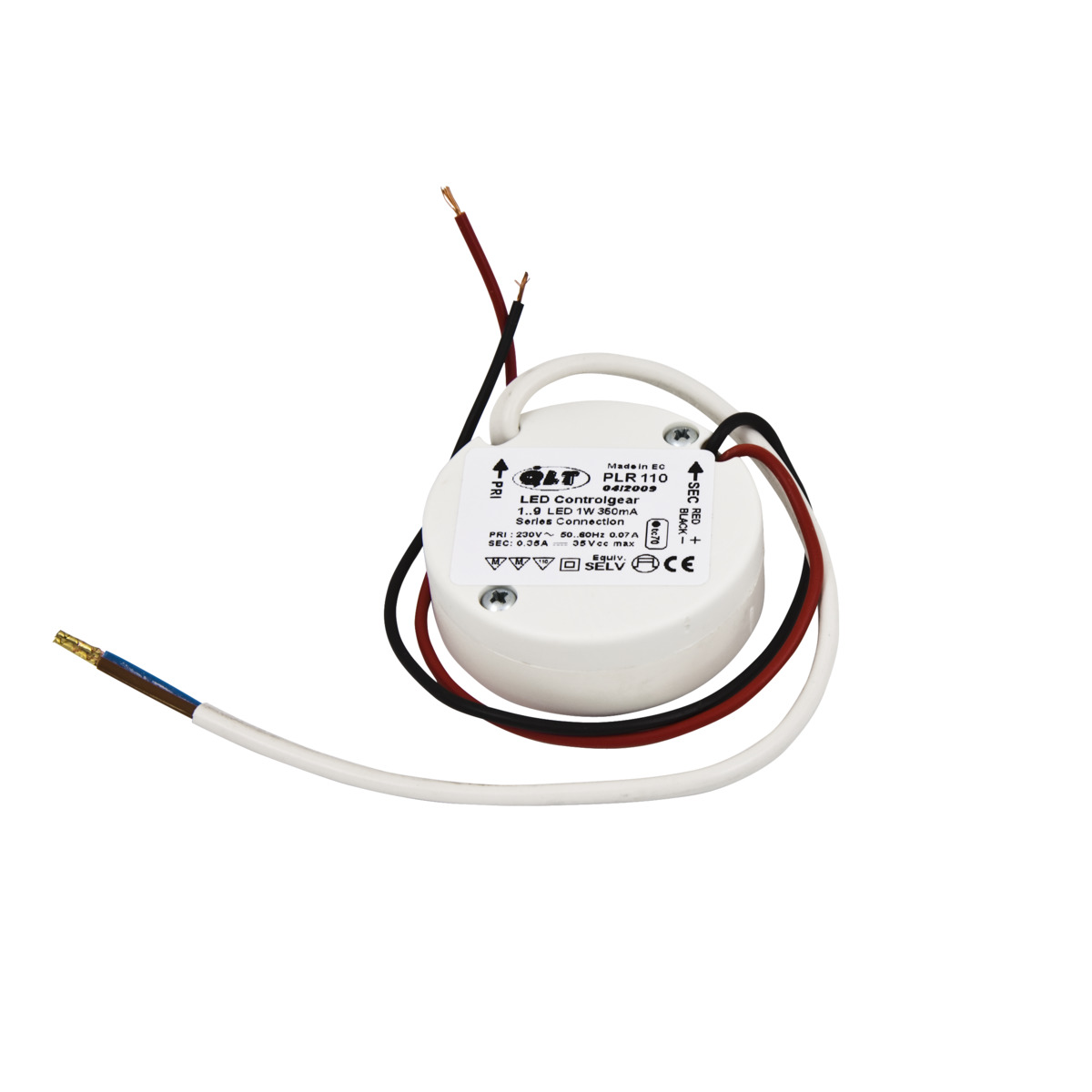

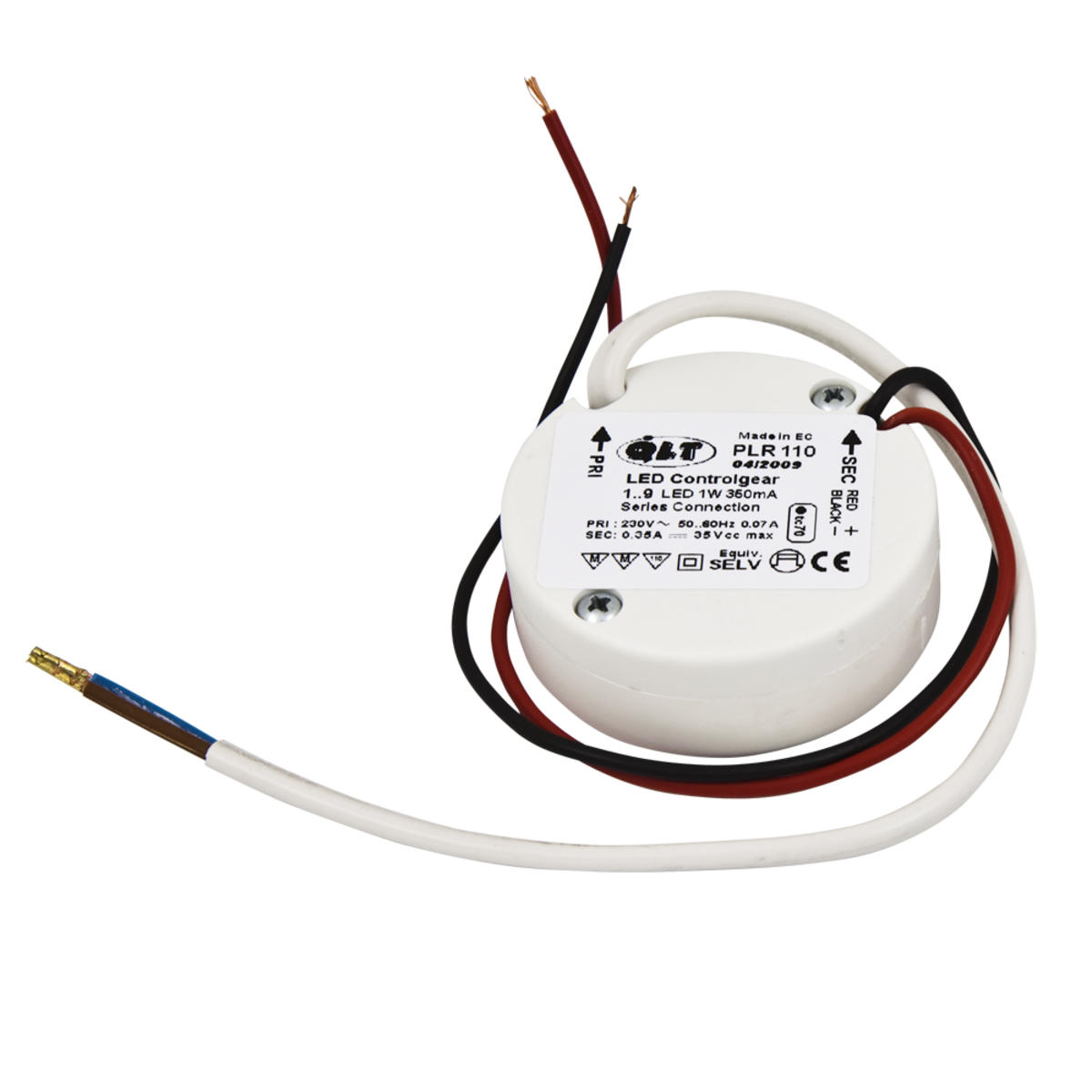

Converter PLR

Constant current converter for 350 mA or 700 mA LED light sources. For installation in appliance boxes or similar.

Variants

GTIN Item Name
Converter PLR 350mA 7331575109298 Converter PLR 350mA
Converter PLR 700mA 7392971117898 Converter PLR 700mA

Converter PLR 350mA

Description
GTIN 7331575109298
Item Name Converter PLR 350mA
Warranty 5 years
Operation and Connection
Driver Model Constant Current
Driver Type Built-in
Connection (type) Cable
Connection (mm2) 2x0,5
Connection Secondary (type) Cable
Secondary Connection (mm2) 2x0,5
Voltage Output Interval (V) 2-30
Power Interval for Catalogue (W) 1-10,5
Constant Current (mA) 350
Operating Temperature -10...+40
Dimmable No
Type of Dimming OnOff
Protection Against Short Circuit, Overload, Overheating 110°C
Color and material
Material Plastic
Color White
Measurement and installation
Operating Environment Indoor / dry locations
IP Degree of Protection 20
Protection Class II
Fire Safety Marks MM-mark
Approval Marks CE
Height (mm) 19
Diameter (mm) 53
Weight (kg) 0,05
Built-in Ø (mm) 53

Images and downloads

Accessories

No accessories for this product.
