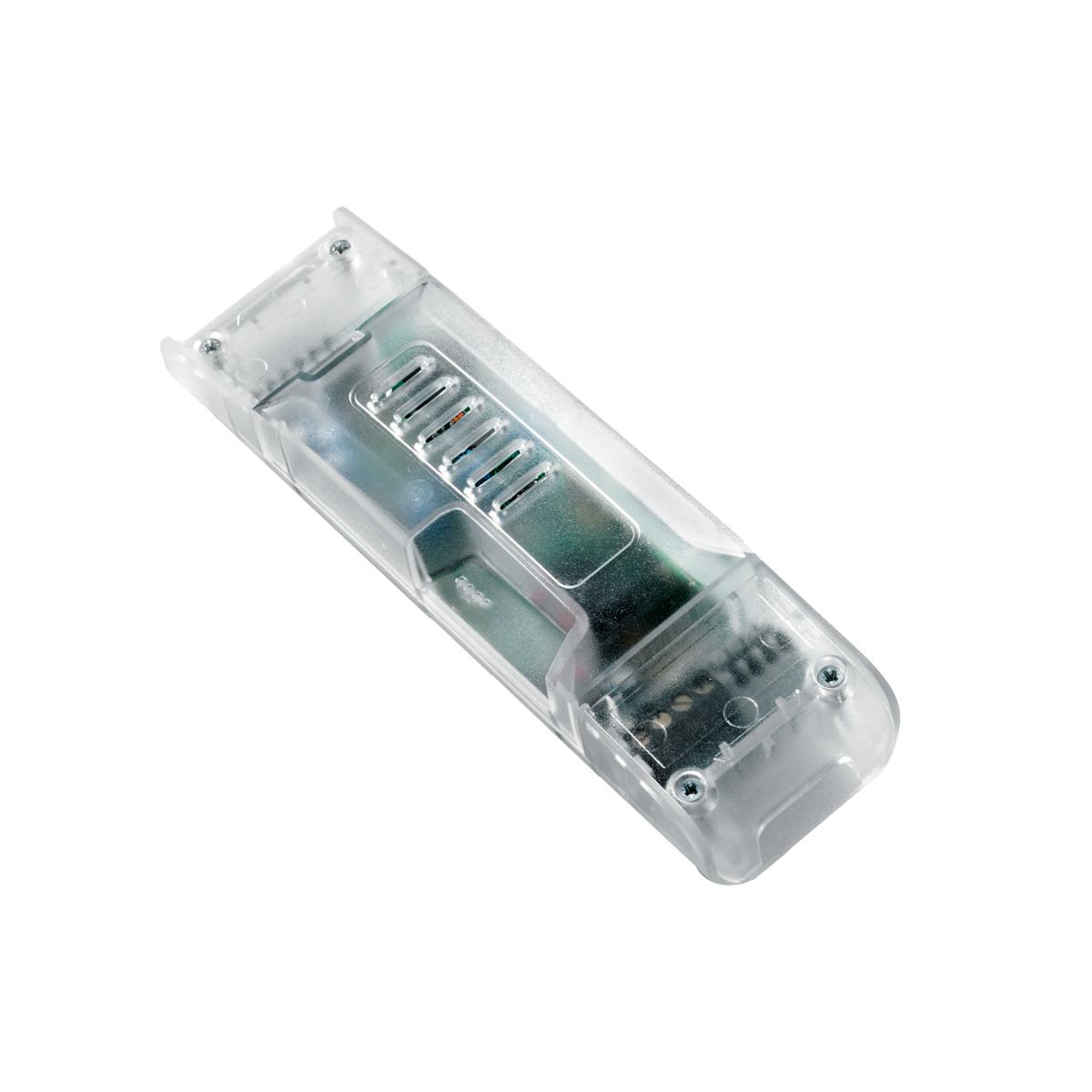

LED-dimmer RGBW 12/24V RF

LED dimmer for constant voltage with four channels for controlling and colour mixing of LEDstrip RGBW and/or an RGBstrip and white LEDstrip. Wired control via spring-loaded pushbuttons and/or wireless via 7 or 42 channel remote control with functions for 8x programmable base colours, scenarios for colour change and dimming. RGB and white can be controlled independently. Up to 5 slaves can be connected to a master with synch cable that is included with the slave. Connects to LED-trafo 12/24V.

Variants

GTIN Item Name
LED-dimmer RGBW 12/24V RF Master 7392971126593 LED-dimmer RGBW 12/24V RF Master
LED-dimmer RGBW 12/24V RF Slave 7392971127422 LED-dimmer RGBW 12/24V RF Slave

LED-dimmer RGBW 12/24V RF Master

Description
GTIN 7392971126593
Item Name LED-dimmer RGBW 12/24V RF Master
Light Technical Data
Nominel Life Time (h) 50000
Life Time Driver 50 000h
Operation and Connection
Driver Model Constant Voltage
Driver Type Stand Alone
Connection (type) Screw Terminals
Connection (mm2) 4x0,5-2,5
Through Wiring Yes
Strain Relief Yes
Connection Secondary (type) Screw Terminals
Secondary Connection (mm2) 7x0,5-1,5
Voltage Output Interval (V) 12-24
Protection Against Short Circuit, Overload, Overheating 110°C
Power Interval for Catalogue (W) 4x30/60
Current (A) 10
Operating Temperature -20…+50
Max. Tc (°C) 75
Dimmable Yes
Type of Dimming Push 2-wire Potential Free, Wireless RF
Memory Function Power Failure Yes
Color and material
Material Plastic
Color Transparent
Measurement and installation
Operation Environment Indoor
IP Degree of Protection 20
Installation Surface mounted
Mounting Installation Screw Mounting
Fire Safety Marks MM-mark
Approval Marks CE
Protection Class III
Length (mm) 165
Width (mm) 47
Height (mm) 35
Weight (kg) 0,14
Min. Built-in (Ø mm) 55
Max. Built-in (Ø mm) 55
