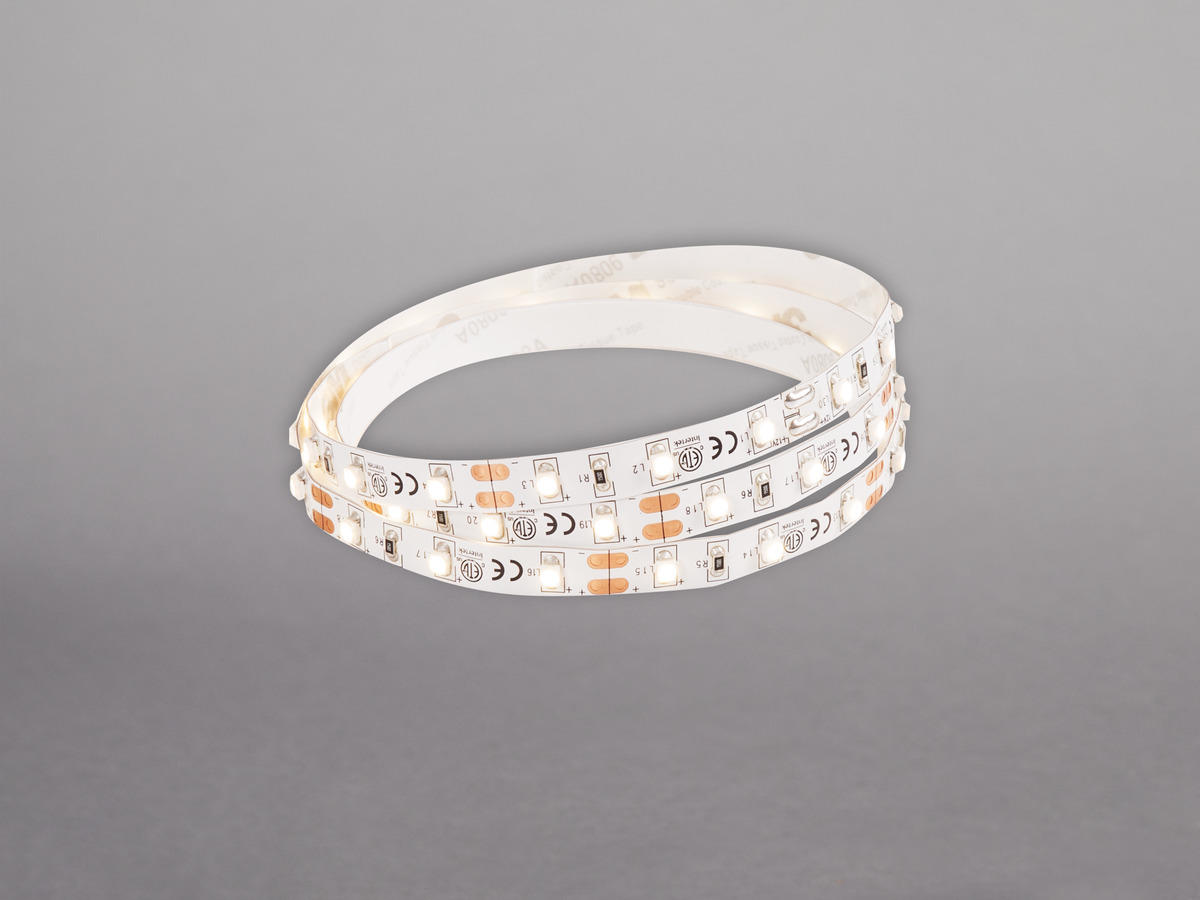

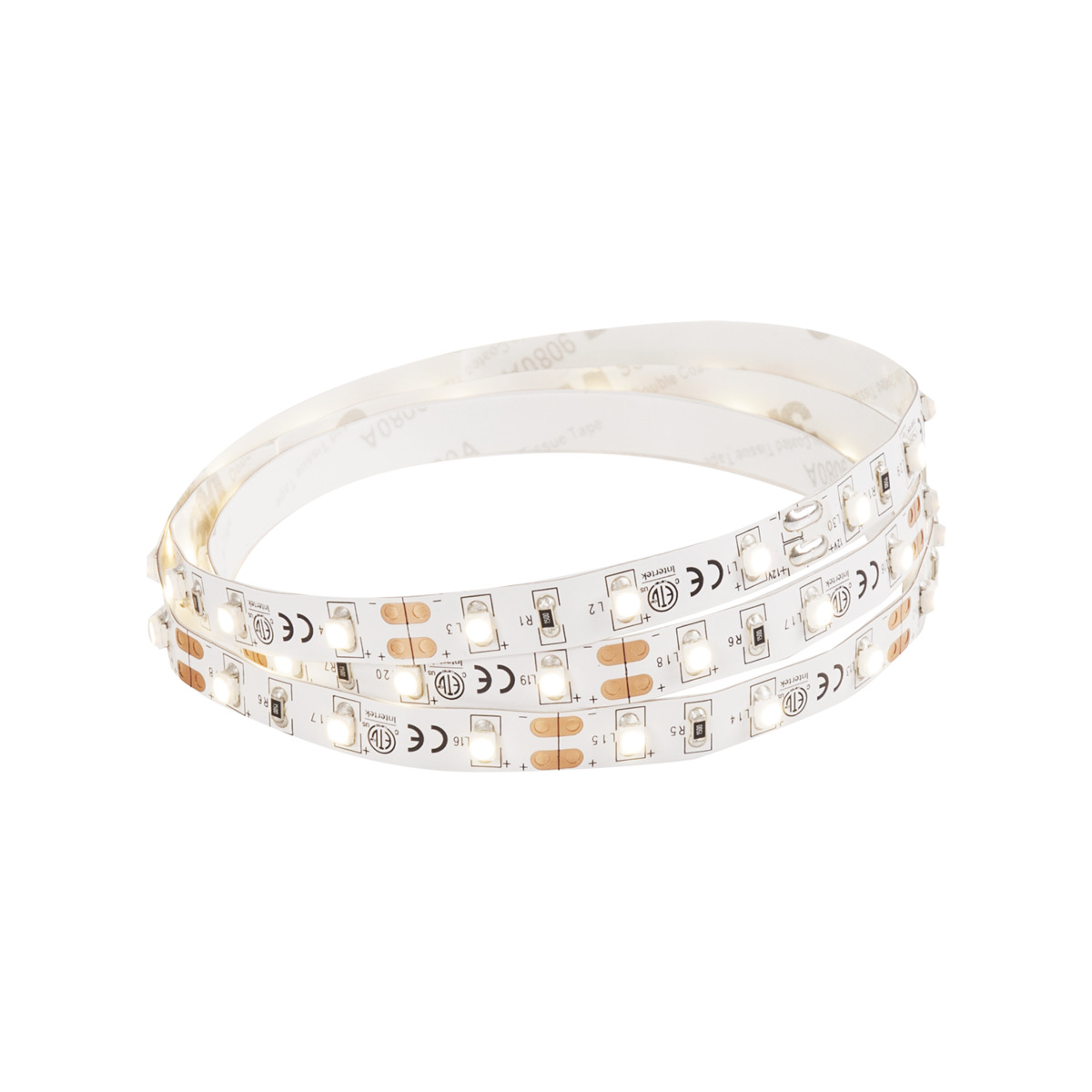

LEDstrip 12V R IP20

Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables

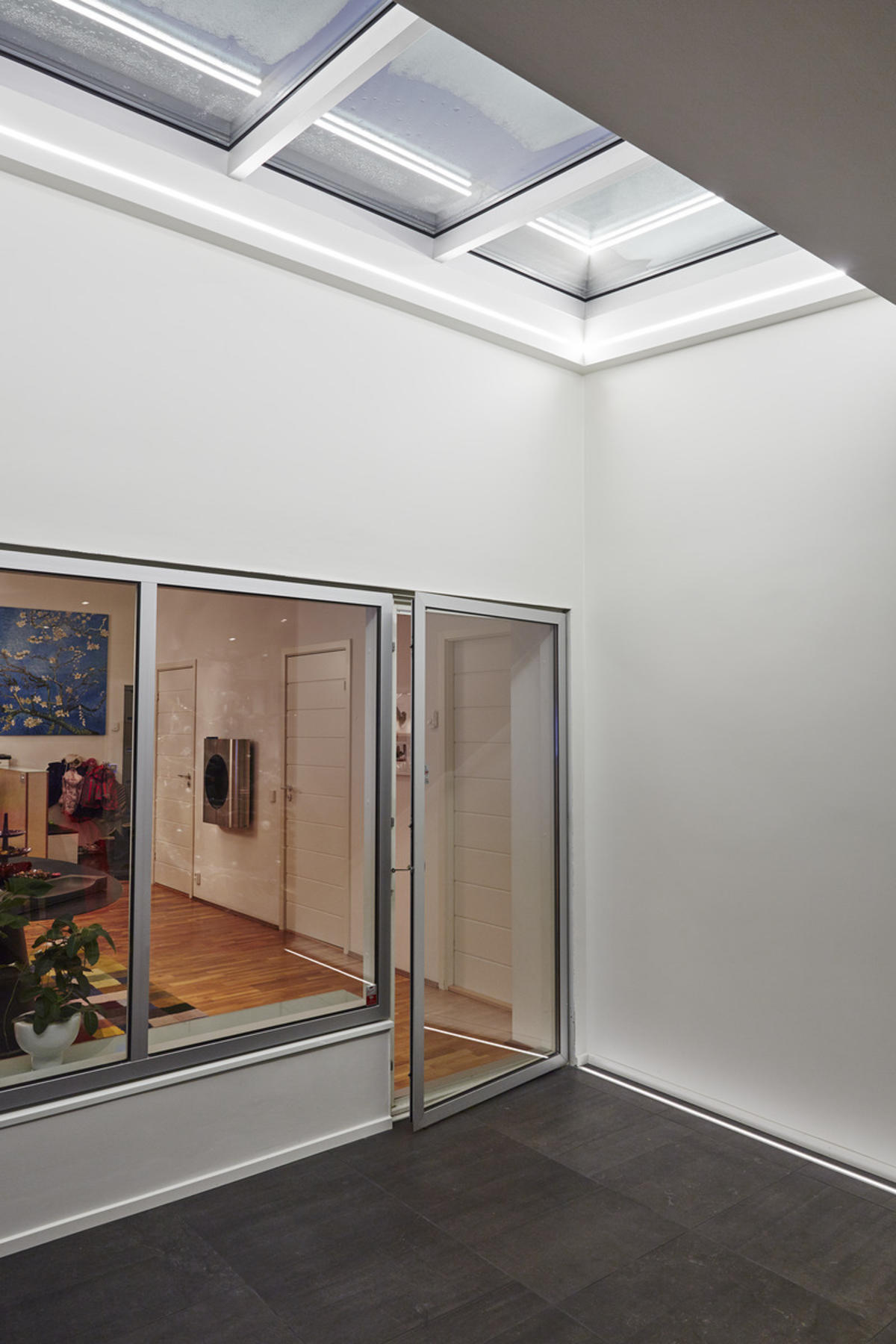

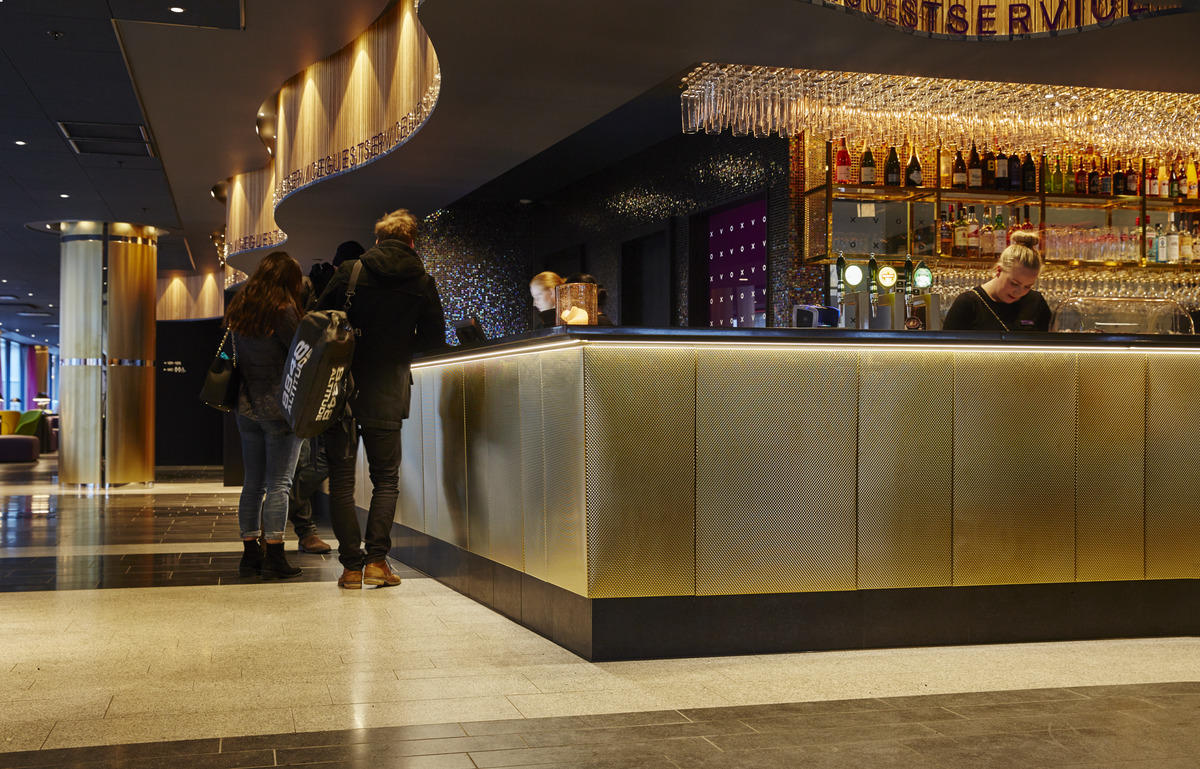

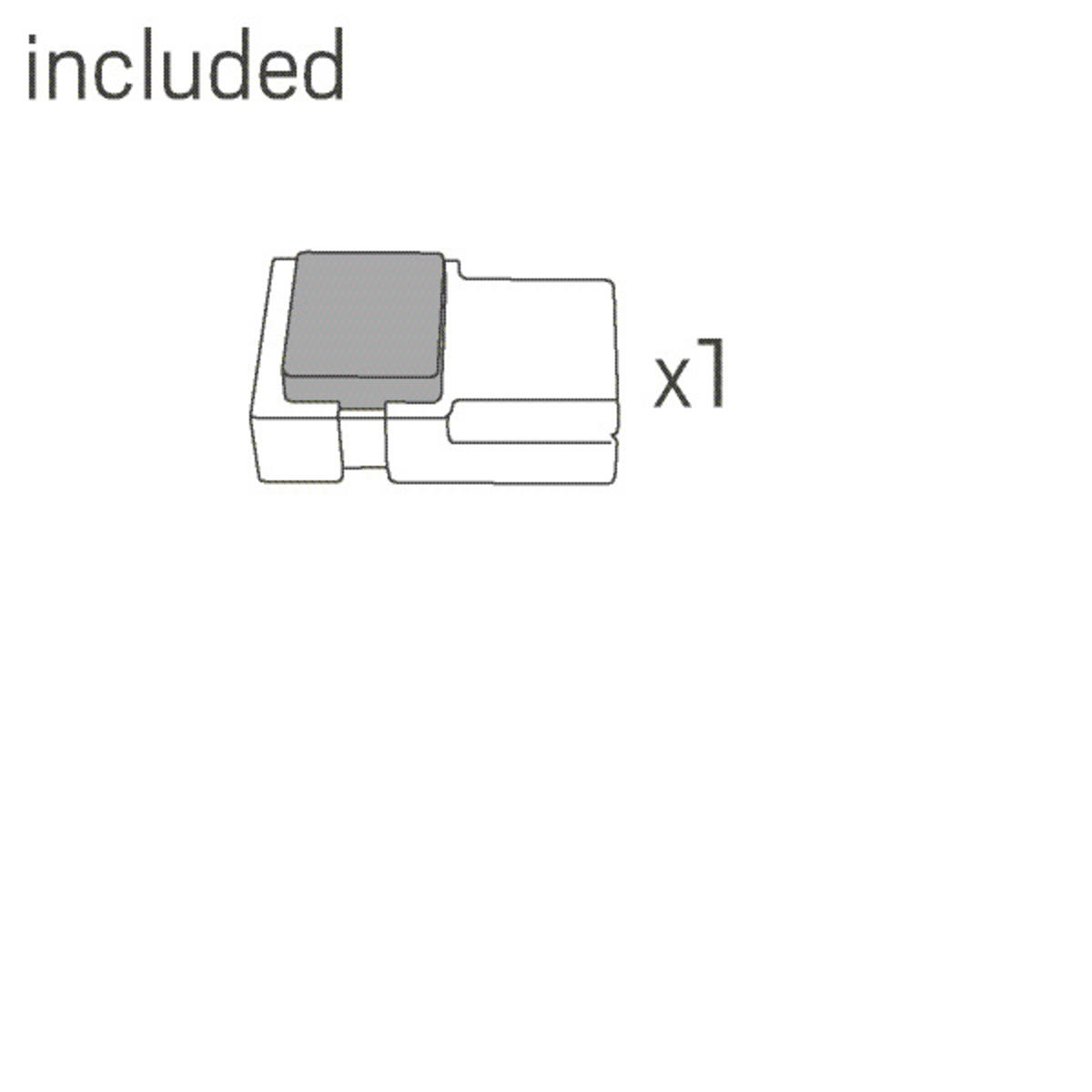

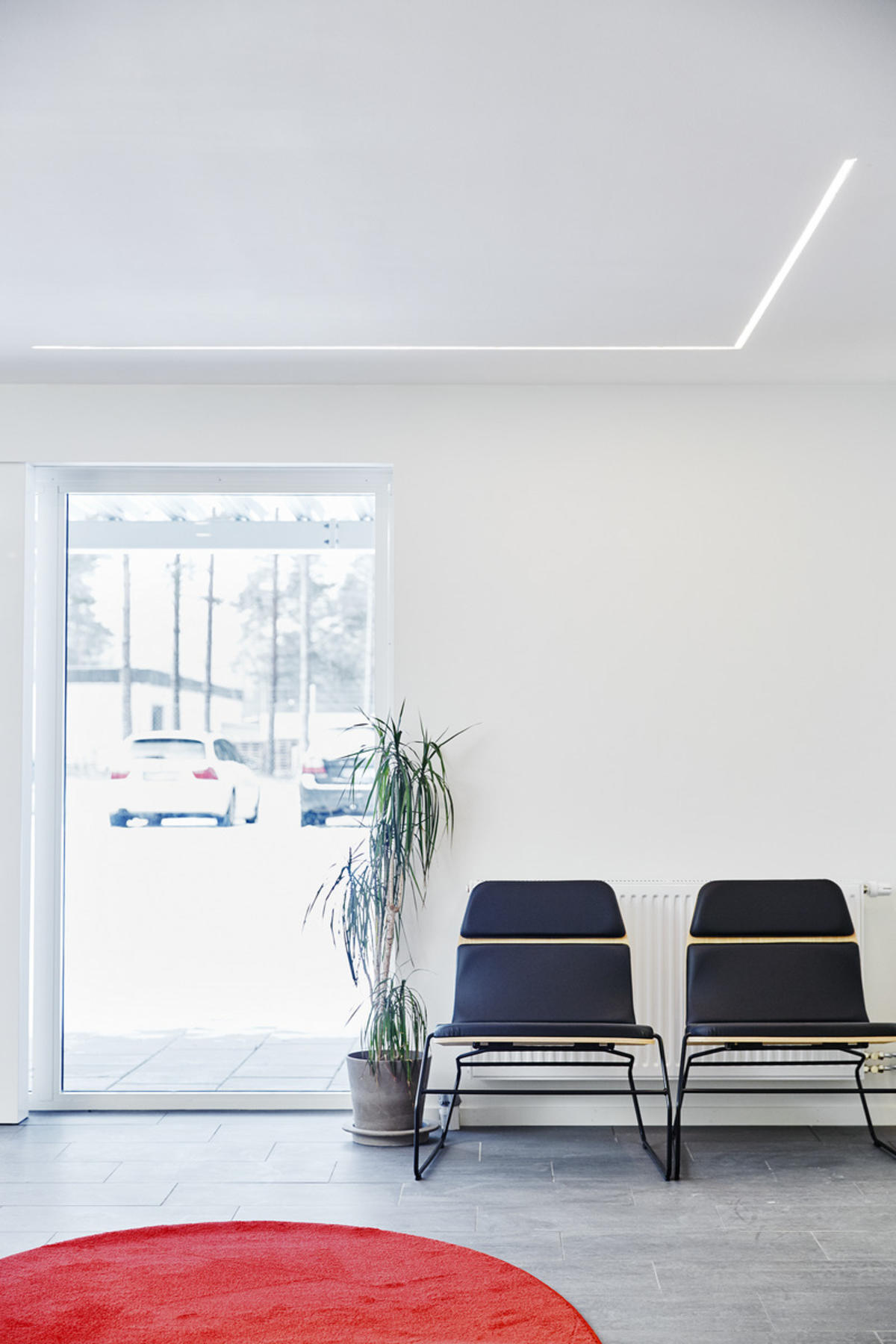

Flexible LEDstrips with very good colour rendering, Ra>90, and lumen output adjusted to attaincreate a beautiful fill and raking light. Lighting, for example, to iIlluminate interior design elements, artwork or furnishings with the correct lustre and the best possible colour appearance. Suits our range of aluminium profiles perfectly. Comes with 2 m connecting cable at each end, 1pc quick connection and self-adhesive tape for easy installation. Also available made to measure in optional lengths. Upon request, running meters with connection cables are delivered according to your specifications; running meters are delivered as standard without connection cables. LEDstrip 12V has a somewhat lower lumen output than LEDstrip 24V. Drivers are ordered separately according to required dimmer technology and placing.

Variants	GTIN	Item Name	Luminaire Lumen (lm)
	7392971125589	LEDstrip R IP20 12V 3000K 5m	1375
	7392971125596	LEDstrip R IP20 12V 3000K lpm	275

Description: GTIN 7392971125589

Item Name LEDstrip R IP20 12V 3000K 5m

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 1375

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >90

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 85

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 300

LED Pitch (mm) 16

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000
Technical data: Adjustable No

Voltage (type) DC

Voltage Interval (V) 12...12

Voltage Nominal (V) 12

Power Luminaire (W) 24

System Power (W) 26,4

Efficiency Luminaire (lm/W) 57

Efficiency System (lm/W) 52

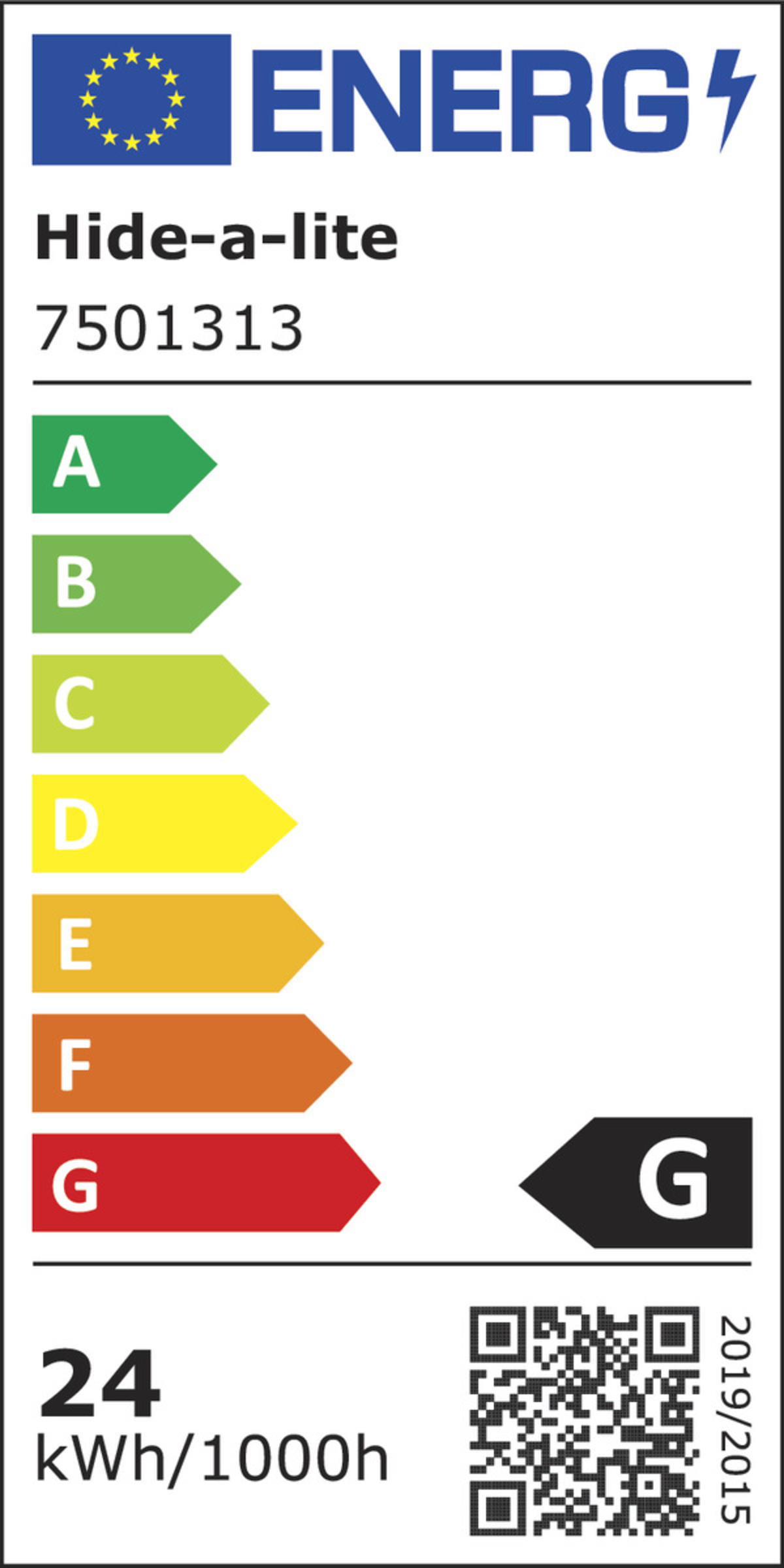

Energy Efficiency Class (EU) 2019/2015 G
Operation and Connection: Dimmable Yes

Driver Included No

Driver Model Constant Voltage

Connection (type) Cable

Length Connection (cm) 200

Connection (mm2) 2x0,5

Length Connection Secondary (cm) 200

Operating Temperature -10...+40
Color and material: Material Copper

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class III

Installation Surface mounted

Mounting Installation Self Adhesive Tape

Approval Marks CE

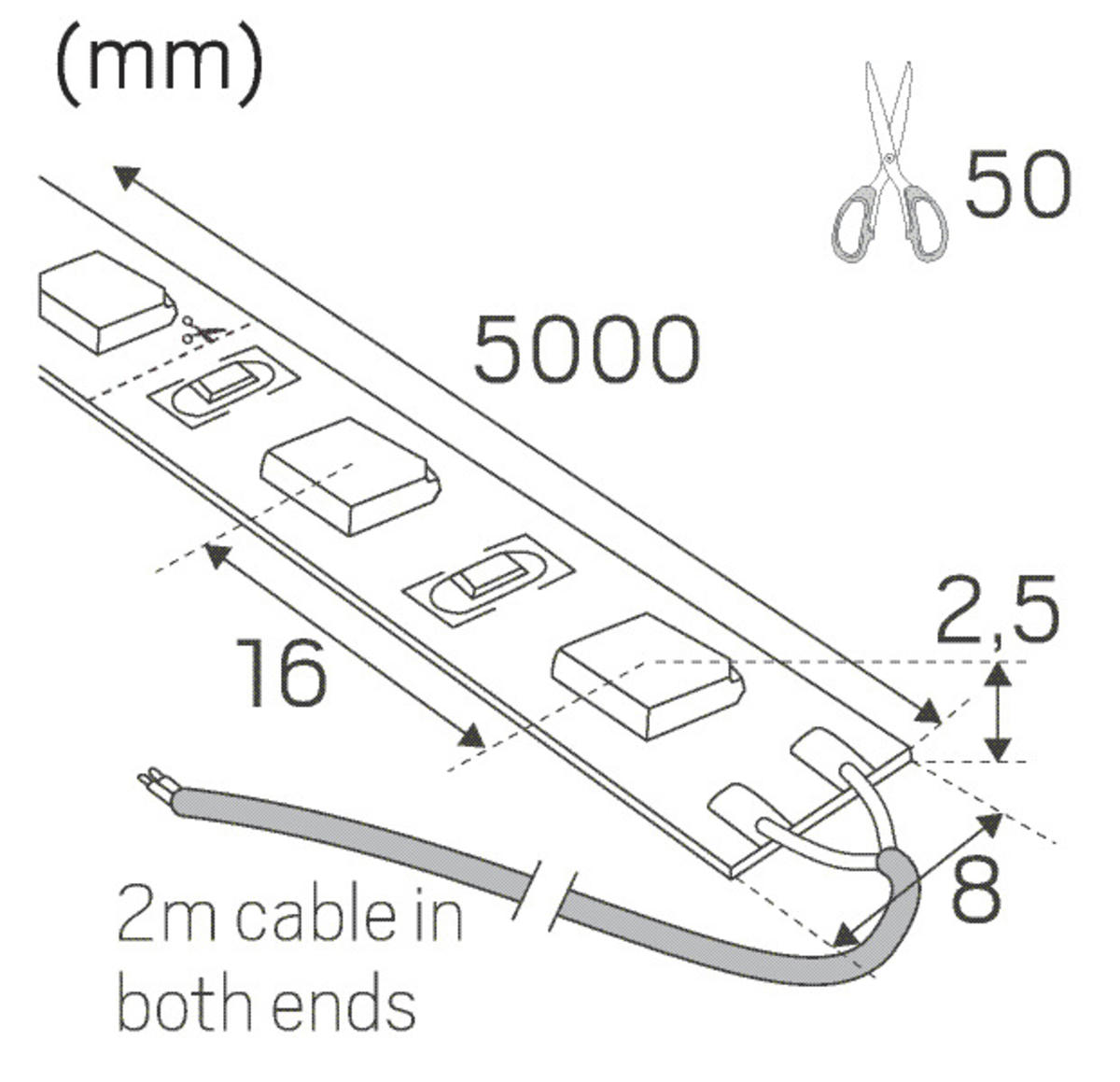

Length (mm) 5000

Width (mm) 8

Height (mm) 3

Weight (kg) 0,1
LEDstrips: Min. Bend Radius (mm) 60

Min. Length (m) 0,05

Max. Length (m) 10

Cutting Increments (mm) 50
