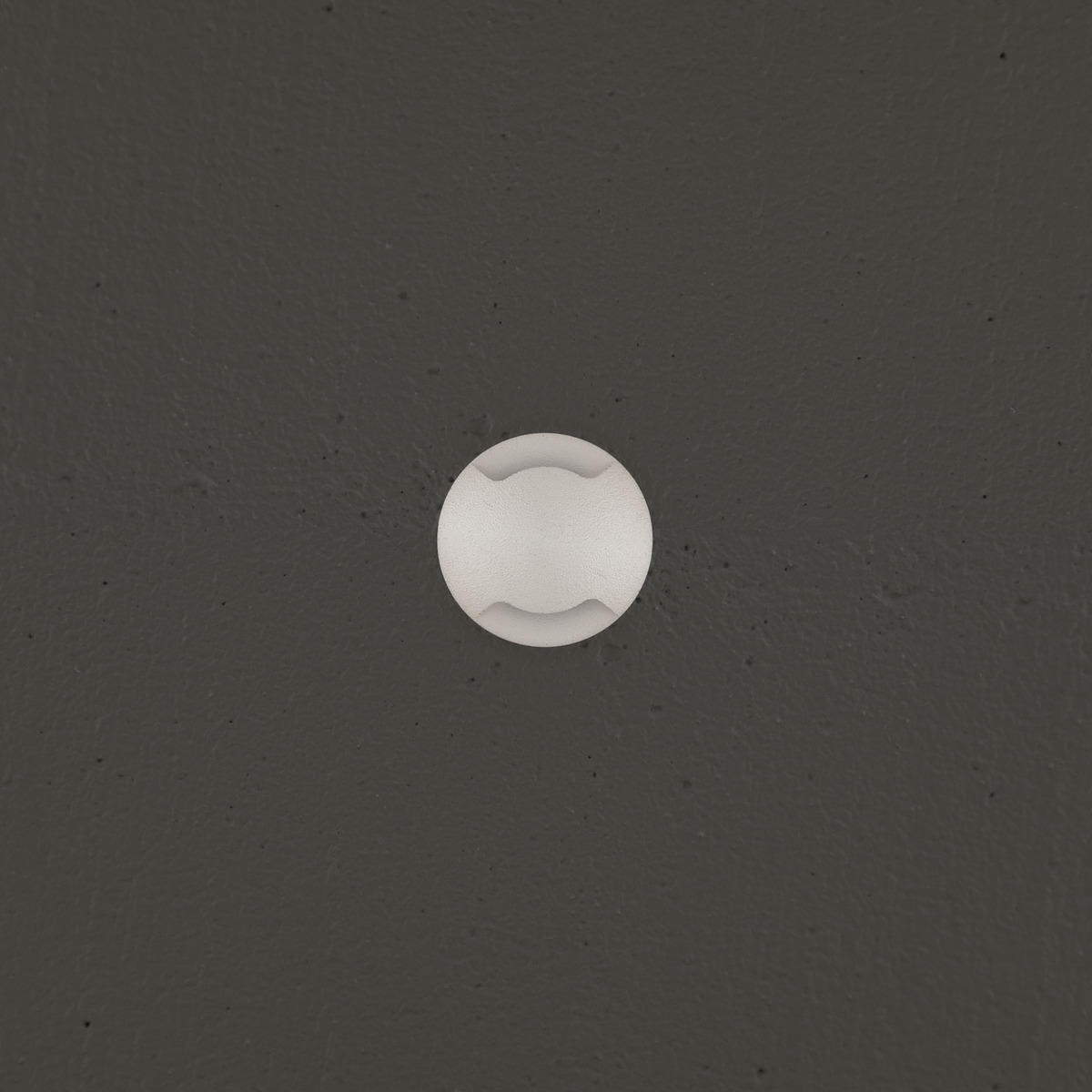

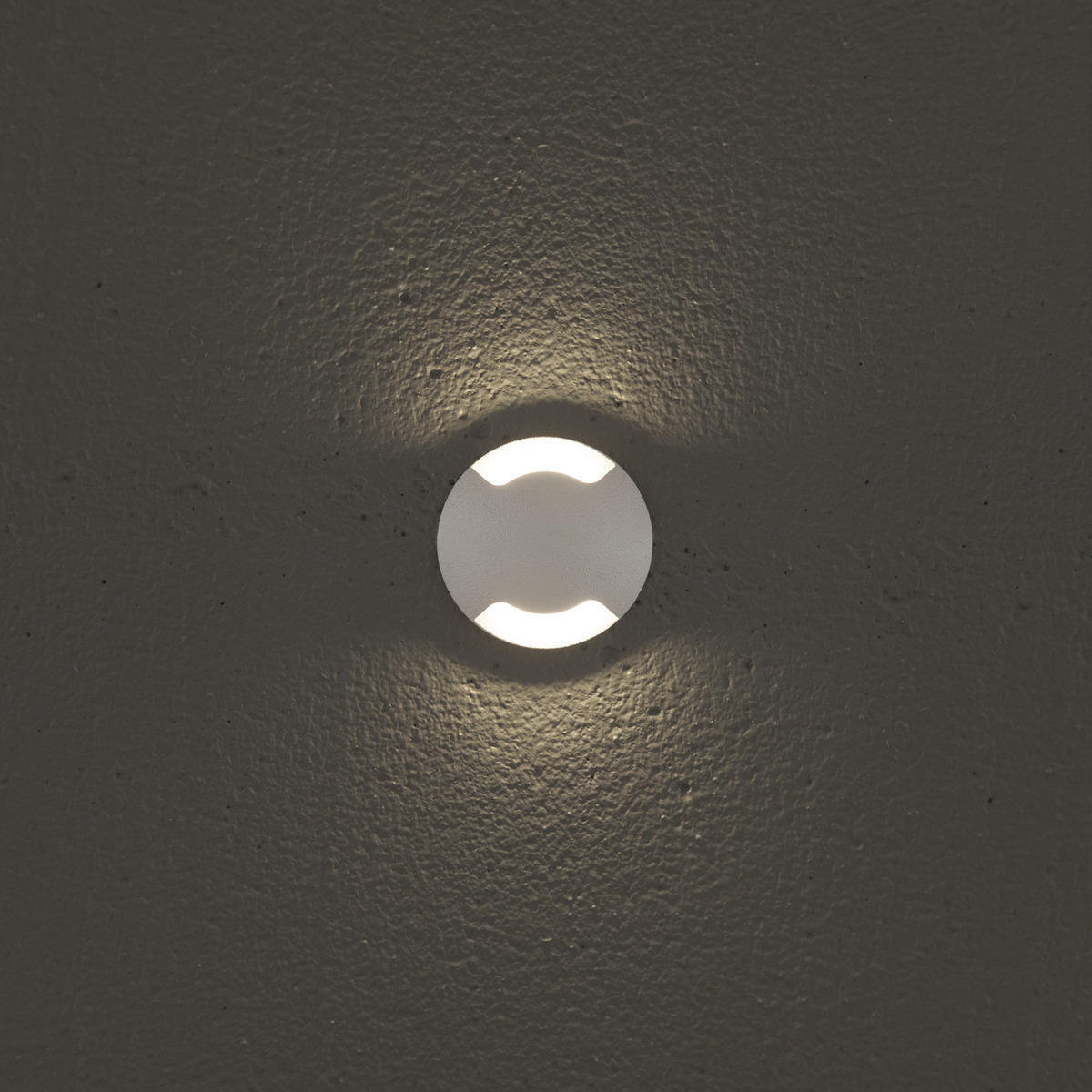

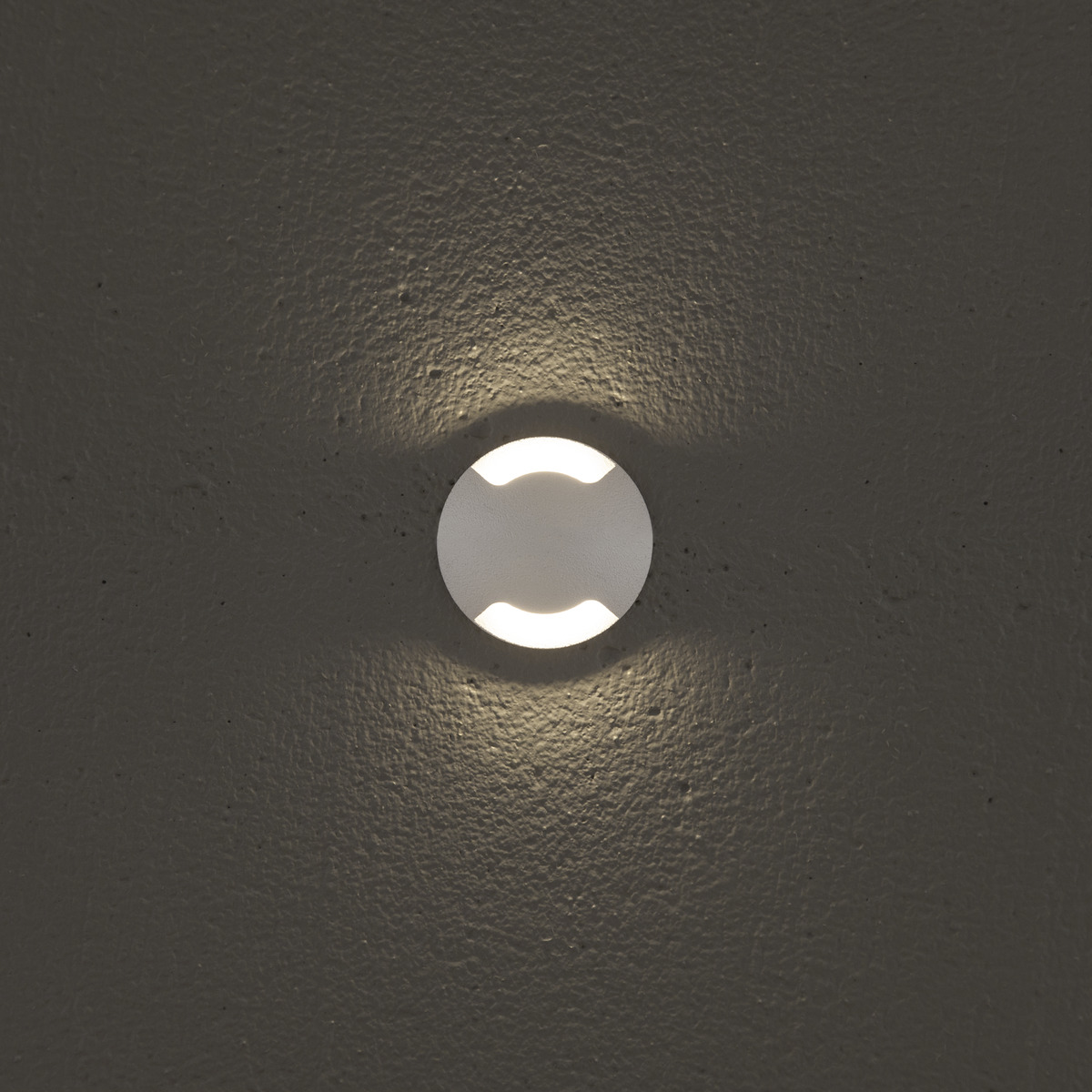

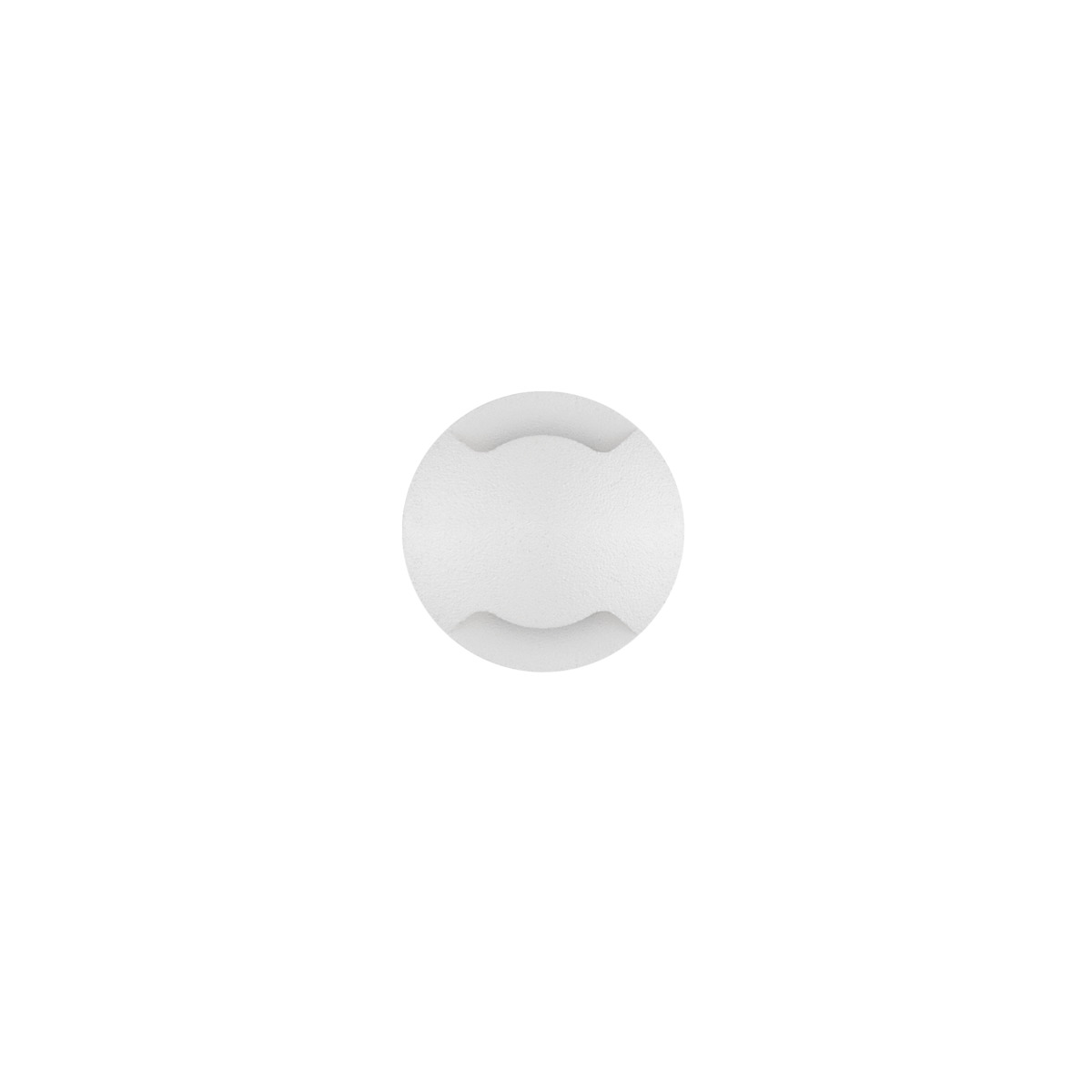

Deco II

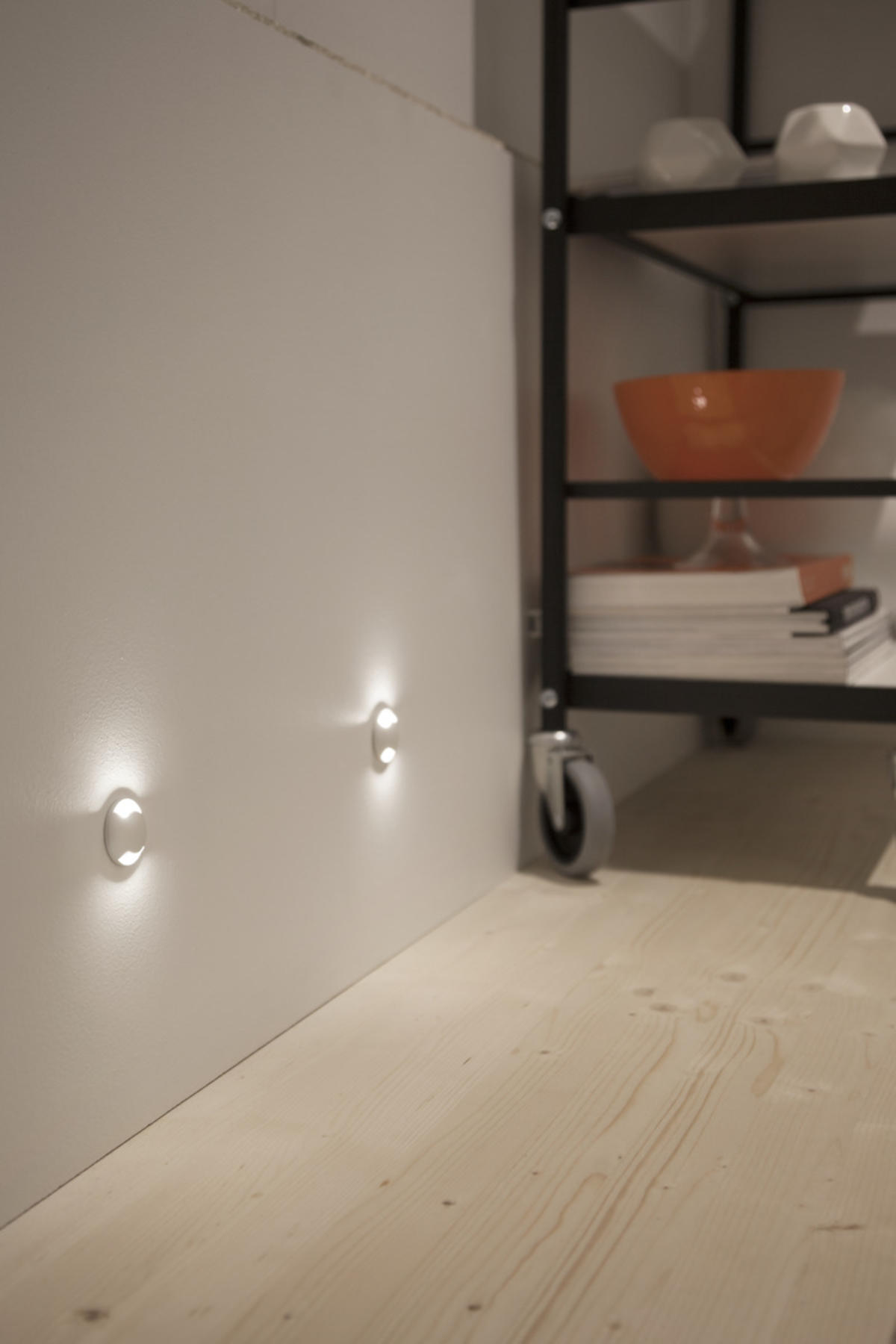

Decorative accent lighting in IP65 rating suitable for indoor or outdoor environments such as walls, decks, building frontages, etc. Housing of aluminium, powder coated with sand blasted finish. Connects to constant current converter for 350mA. Drivers ordered separately and are available with or without dimming possibility.
Variants
| GTIN | Item Name | Color | |
|---|---|---|---|
|
7392971124094 | Deco II White | White |
|
7392971124100 | Deco II Grey | Grey |
Deco II White
- Description
-
GTIN
7392971124094
Item Name Deco II White
Warranty 5 years
- Light Technical Data
-
Light Source
LED
Light Source Included Yes
LED Colour Warm White
Colour Temperature (K) 3000
Colour Rendering Index (Ra) >80
Colour Consistency (SDCM) 3
Luminaire Lumen (lm) 8
Light sharing Symmetric
Light Outlet Indirect
Number of Lamps (pcs) 1
Number of LED (pcs) 1
Life Time L70 50 000h Ta 25°C
Nominel Life Time (h) 30000
- Technical data
-
Adjustable
No
Power Luminaire (W) 1,2
- Operation and Connection
-
Driver Included
No
Driver Model Constant Current
Connection (type) Mini Contact
Length Connection (cm) 200
Constant Current (mA) 350
Operating Temperature
Dimmable Yes
- Color and material
-
Material
Aluminium
Color White
- Measurement and installation
-
Operating Environment
IP Degree of Protection 65
Protection Class III
Installation Built-in
Mounting Installation Tension Spring
Fire Safety Marks Not in insulation without protection cover
Approval Marks CE

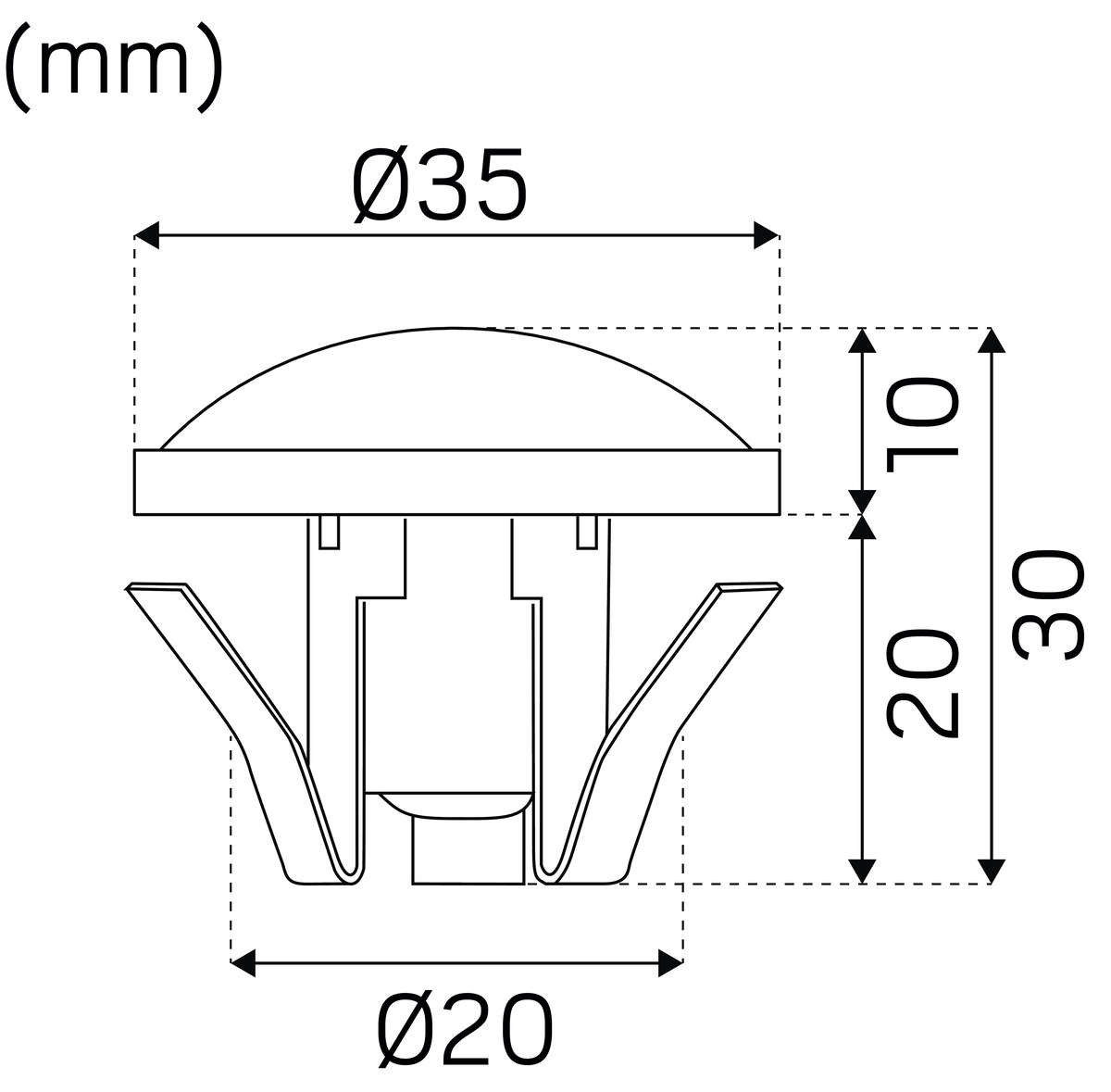

Height (mm) 30

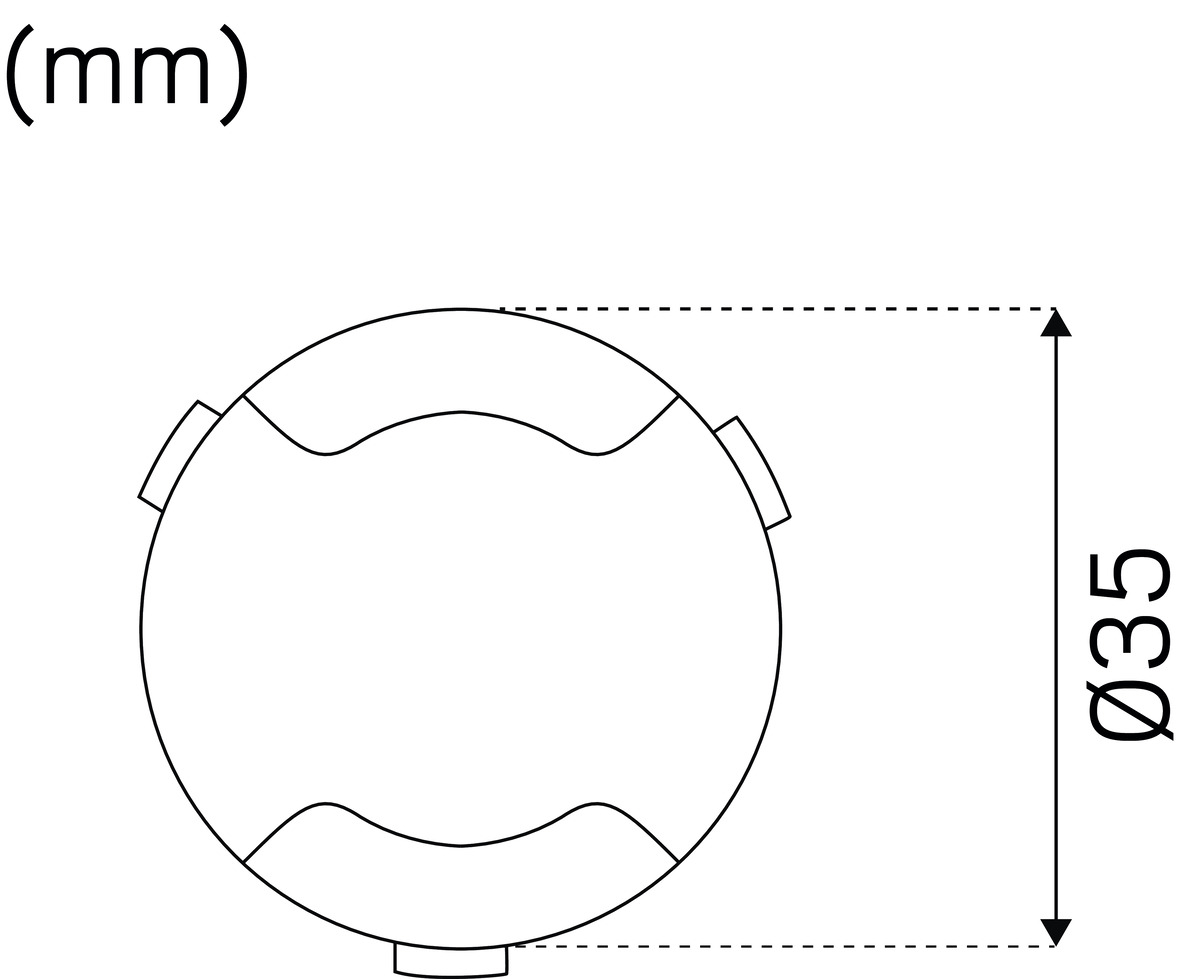

Diameter (mm) 35
Weight (kg) 0,3
Min. Built-in (mm) Ø21x25
Height Recessed Part (mm) 20
Height Exterior Part (mm) 10
Built-in Ø (mm) 21
