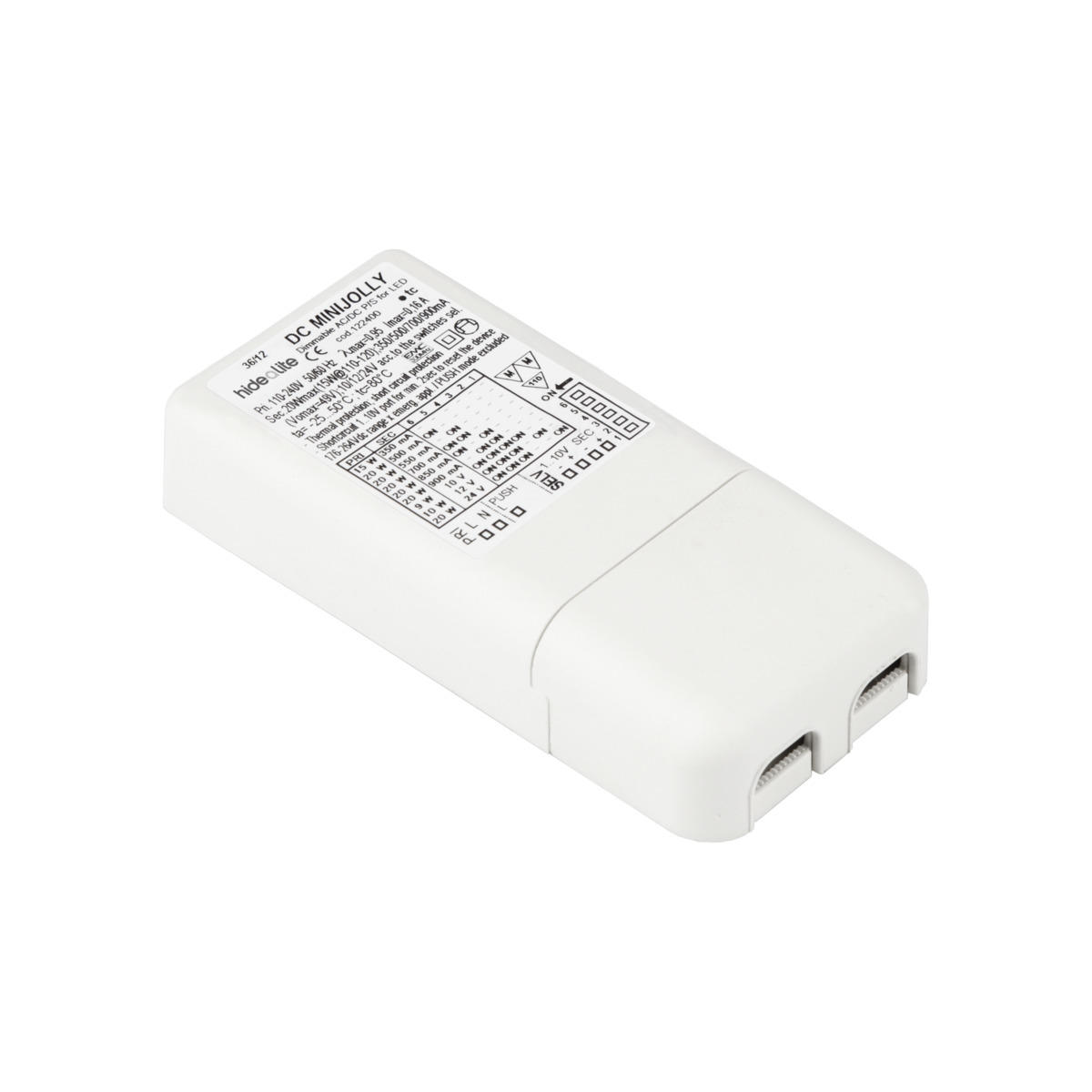

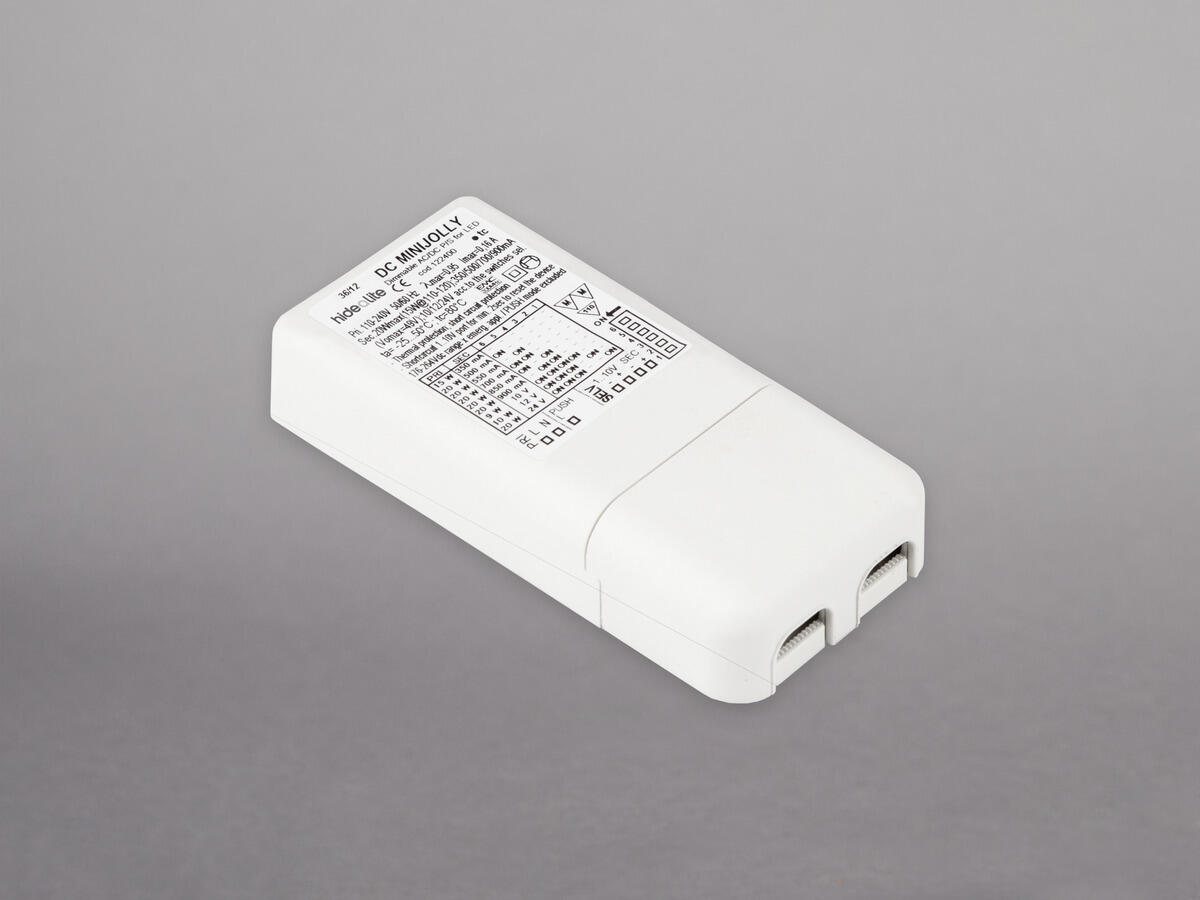

Jolly Mini

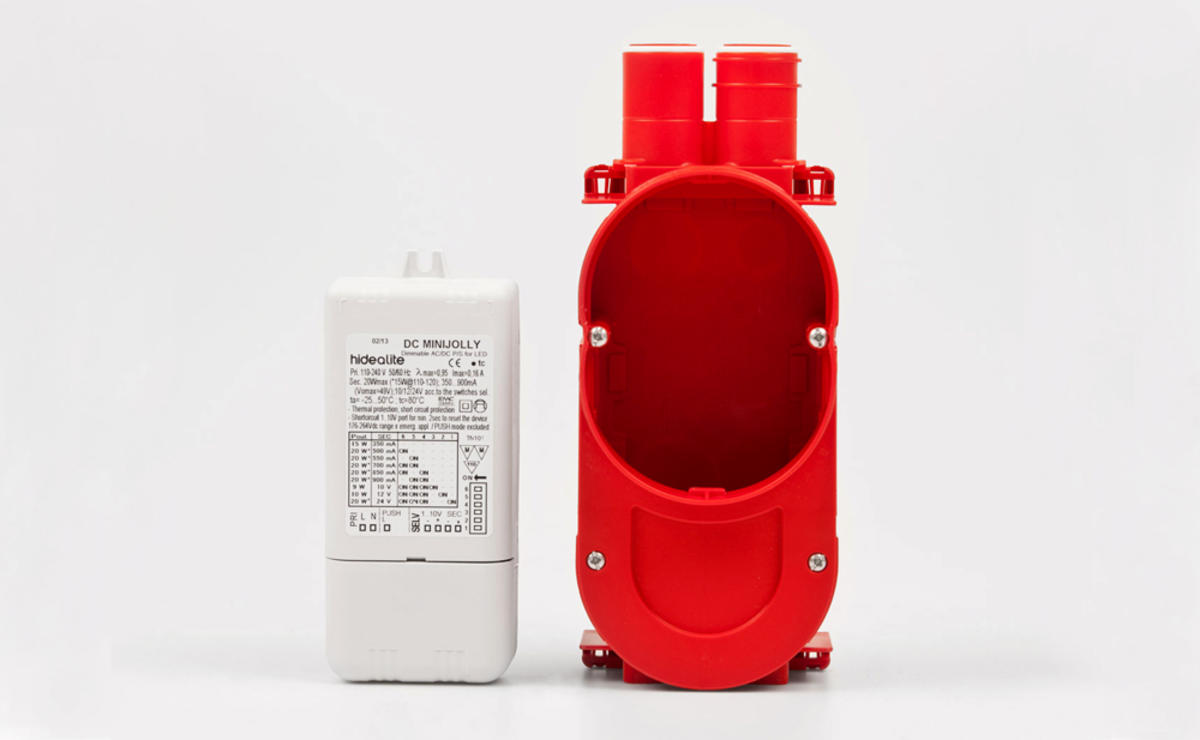

All-in-one converter for LED with built in hybrid dimming (PWM & AM). Able via a simple adjustment to drive and regulate several types of LED light sources, both constant voltage DC (12 and 24V) and constant current DC (250-900mA in 50mA step). Can be controlled from one or more places via a spring-loaded pushbutton, or via a potentiometer, via 1-10V. Slimmed format for simple installation in 1 ½ boxes or together with the luminaire in Spot Guard Gles (7392971120195).

Description: GTIN 7392971122601

Item Name Jolly Mini

Warranty 5 years
Light Technical Data: Life Time Driver 50 000h/5%

Flicker (PstLM) 0,019

Stroboscopic effect (SVM) 0,003
Technical data: Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60
Operation and Connection: Dimmable Yes

Type of Dimming 1-10V, Push 230V, Potentiometer

Driver Model Constant Current, Constant Voltage

Driver Type Stand Alone

Connection (type) Quick Terminal

Connection (mm2) 2x0,5-1,5

Through Wiring No

Strain Relief Yes

Connection Secondary (type) Quick Terminal

Secondary Connection (mm2) 2x0,5-1,5

Voltage Output Interval (V) 3-53

Power Factor ʎ 0,9

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

THD (%) 10

Power Interval for Catalogue (W) 350mA 0-15W (2-43V) 500mA 0-20W (2-40V) 700mA 0-20W (2-29V) 12V 0-10W 24V 0-20W

Standby Power 0,5

Constant Current (mA) 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900

Operating Temperature -20…+50

Max. Tc (°C) 75

Dimming secondary side Hybrid

Frequency PWM dimming (Hz) >300

Memory Function Power Failure Yes

Protection Against Short Circuit, Overload, Overheating 110°C

Inrush current (max/time) 5A 50µs

Fuse B10 (pcs) 31

Fuse B16 (pcs) 50

Fuse C10 (pcs) 52

Fuse C16 (pcs) 85
Color and material: Material Plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Built-in, Surface mounted

Fire Safety Marks MM-mark

Approval Marks CE, Kema Keur, ENEC 05

Filament Test IEC 695-2-1(°C) 850

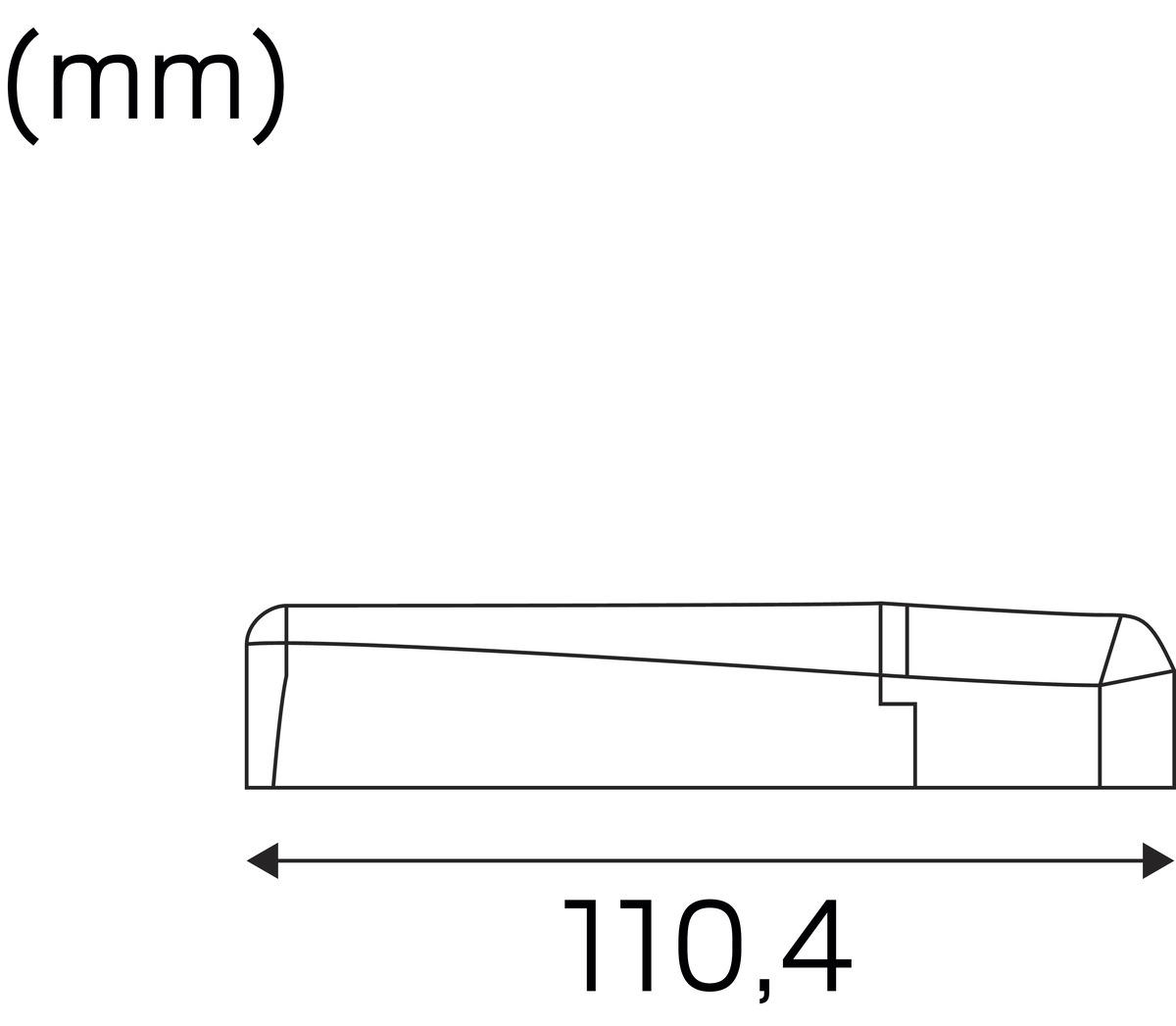

Length (mm) 111

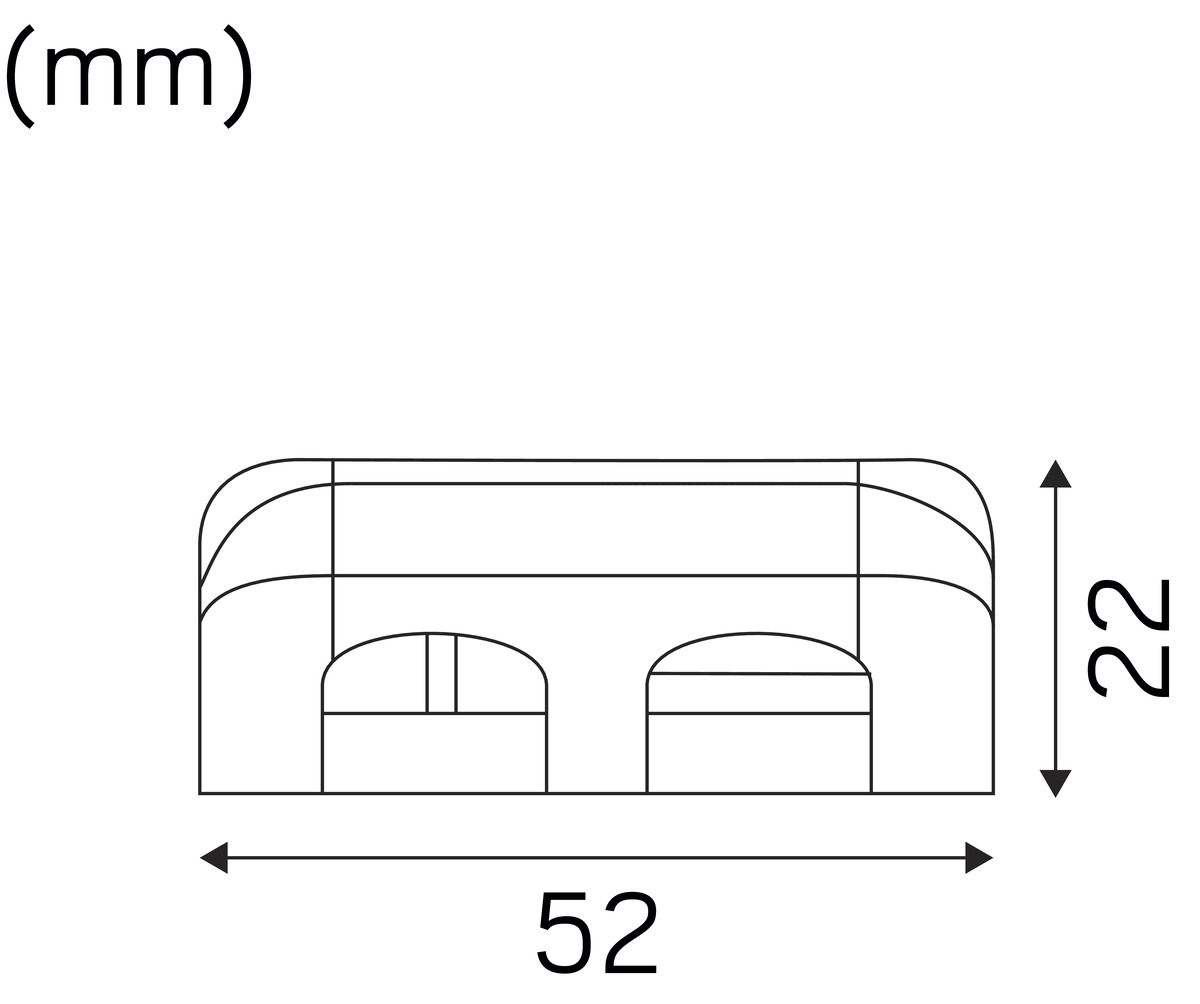

Width (mm) 52

Height (mm) 22

Weight (kg) 0,106

Built-in Ø (mm) 55
