Q-Box

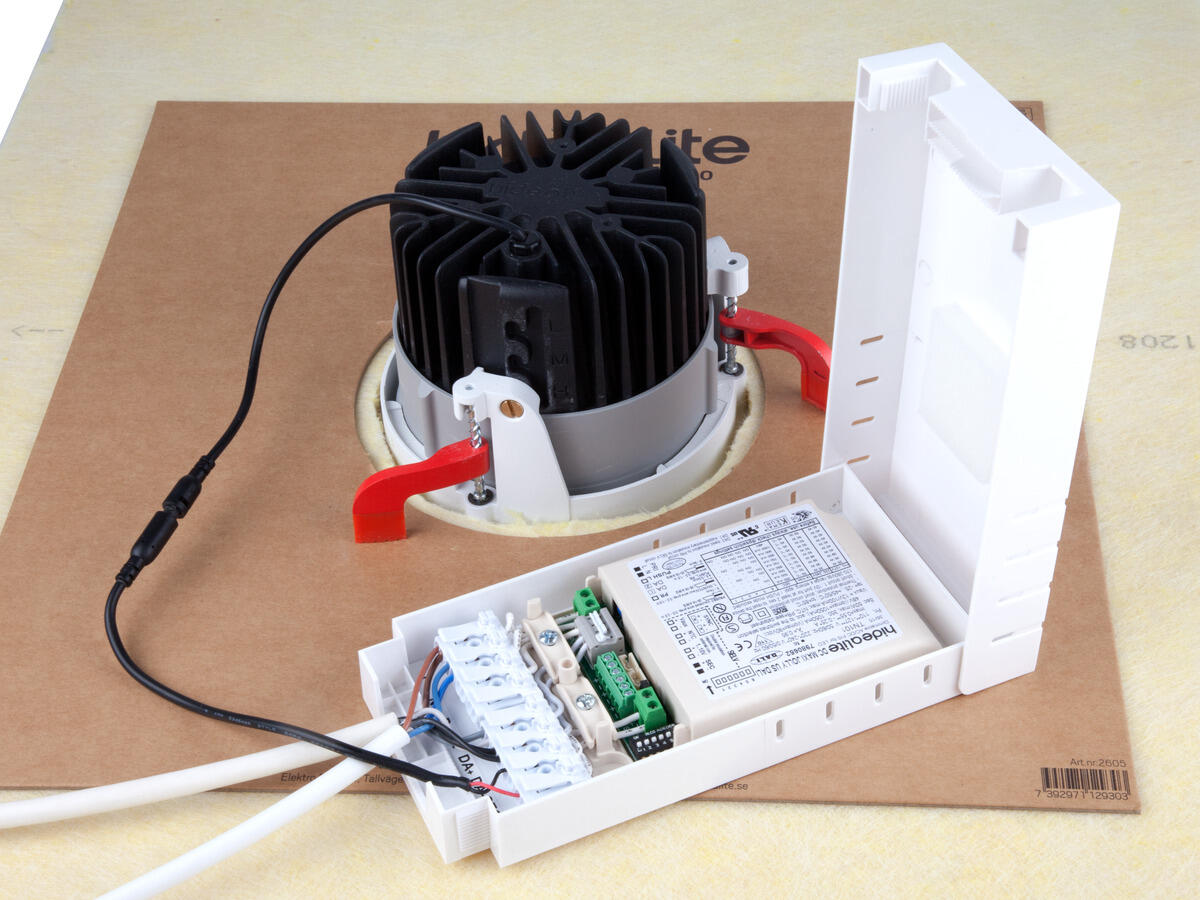

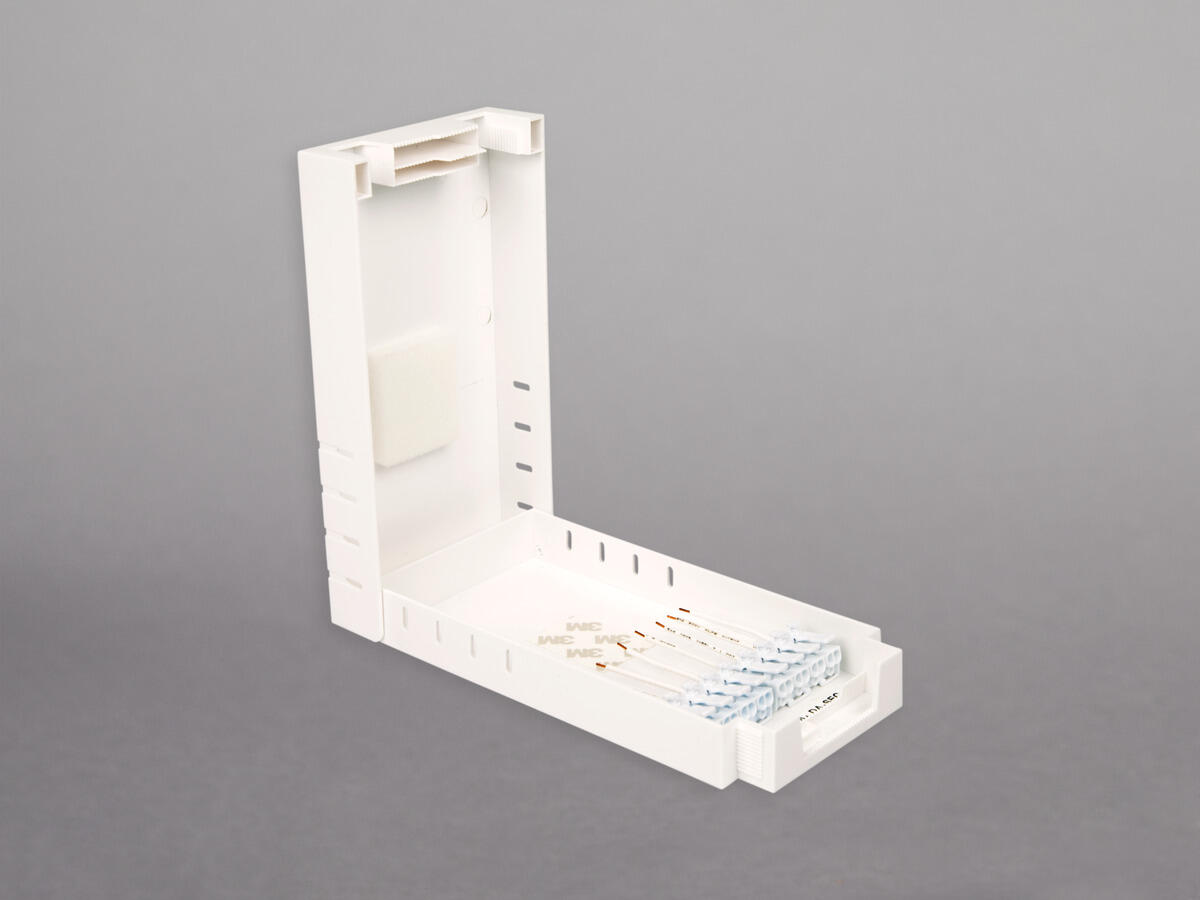

Stand-alone driver casing in white halogen-free plastic for indoor use. With push-in terminal blocks 8 x 0.5-2.5 mm² for connecting driver. Suitable for through wiring between drivers or luminaires, possible through wiring for both incoming power and lighting control. Can be used to conceal drivers or as a connection point. Q-box is most suited for use with our Jolly drivers and requires no tools. Screwless strain relief and through wiring for a service-friendly installation.

Q-box

Save as favourite Save as pdf
Description
GTIN 7392971128696
Item Name Q-box
Warranty 5 years
Operation and Connection
Color and material
Measurement and installation

Accessories

7910310p-.tif

Mounting Plate 400x400

Mounting plate in treated cardboard to facilitate installation of downlights in soft suspe…

Accessory to

jollymaxius_w1.tif

Jolly Maxi US

LED converter with built-in dimmer function, supplied as standard with hybrid technology w…
jollymaxiusdali_w1.tif

Jolly Maxi US DALI

LED converter with built-in dimmer function, supplied as standard with hybrid technology w…
jollyus32_w.tif

Jolly US 32

All-in-one converter for LED with built in PWM dimmer. Able via a simple adjustment to dri…

Downloads

Manual Q-Box
DoC Connections boxes and cables

Related products

dbox_w.tif

D-Box

Functional inset box of halogen-free plastic (V0) that gathers and conceals you drives in one and the same place. For installation between battens. Install your drivers on the enclosed DIN track or fasten them freely on the mounting plate. Knockouts, 4x16 mm and 1x20 mm, are present on all sides for easy installation. The insert box can easily be concealed by painting or wall-papering directly over the cover. Comes complete with 2x DIN tracks, 1x mounting plate and 1x cover and spacer.
sbox_w.tif

S-Box

Convenient and discreet box for external drivers that cannot be built in or hidden away. Service-friendly with easy access to your drivers. Fits most of our drivers for indoor use, which are easily installed in the box. S-box contains quick connection terminal blocks (8x0.5-2.5mm 2) for connection of drivers and strain relief for both in- and outgoing cables. Knockouts for surface-mounted cable on the ends. Best installed over ceiling and junction boxes for concealed connection.
qbox_mini_w.tif

Q-Box Mini

Q-Box Mini is a connection box with a 2-in-1 function in plastic, for traditional through wiring to a terminal block or the Linect quick-connection system. The connection box gives a quick and tool-free installation, with 3 of 5 pole push-in terminals for through wiring and screwless strain relief for cable or flex hose 16mm. Prepared for the universal quick connection system Linect 3 and 5 pole systems and is compatible with systems on the market such as Wieland, Ensto, Wago/Winsta.
