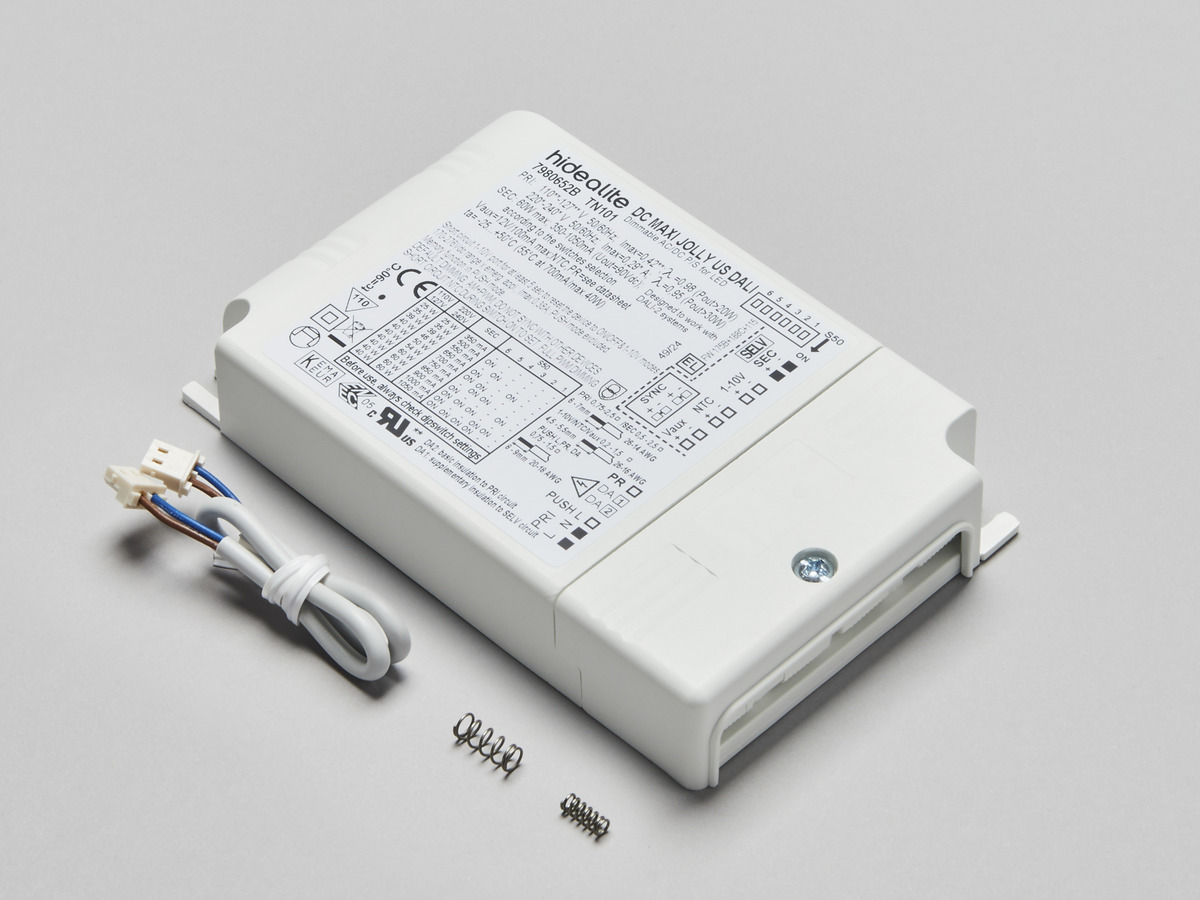

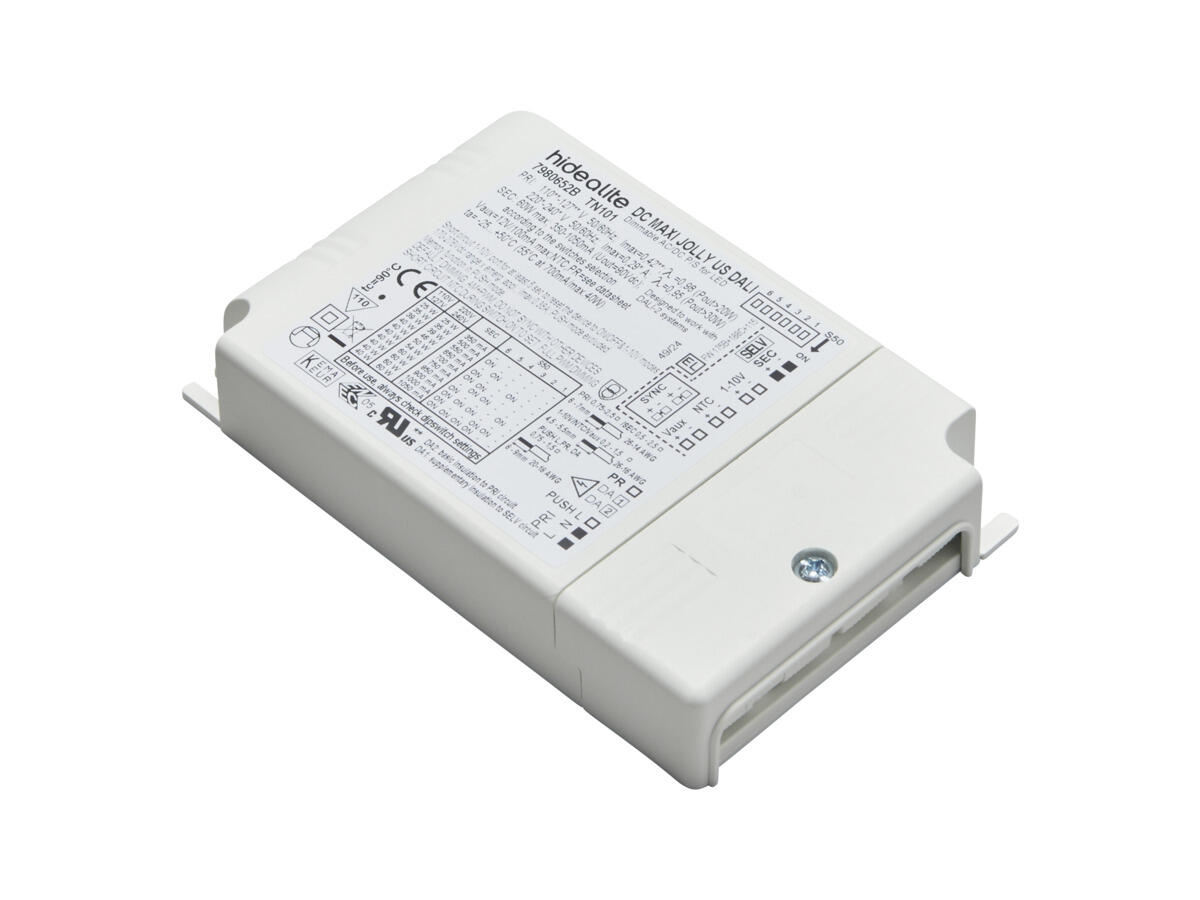

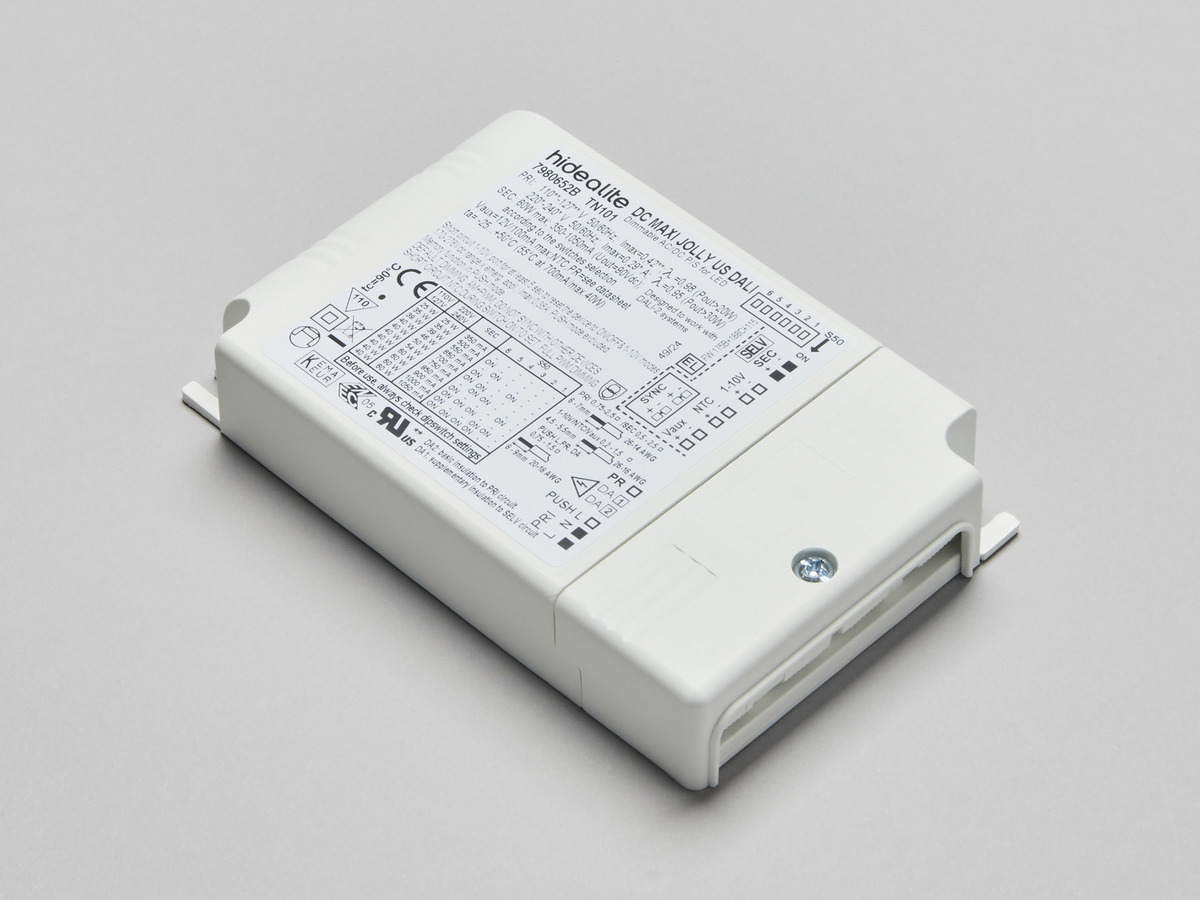

Jolly Maxi US DALI

LED converter with built-in dimmer function, supplied as standard with hybrid technology which gives flicker-free light according to IEEE 1789, 100–25% with AM and 25–1% with PWM @2kHz, all with 100% PWM technology. Drive and dim currents from 350mA -1050mA. 1-10 units can be linked together and controlled via a spring-loaded pushbutton, via a potentiometer, 1-10V or bus/KNX system via an actuator. To link several Jolly with synch cable, 100% PWM must be used, see manual. Jolly Maxi has a memory function, lights up with latest set value after power failure, also via pushbutton.

Description: GTIN 7392971124162

Item Name Jolly Maxi US DALI

Warranty 5 years
Light Technical Data: Life Time Driver 50 000h/5%
Operation and Connection: Dimmable Yes

Type of Dimming Push 230V, 1-10V, Potentiometer, DALI 2

Driver Model Constant Current, Constant Voltage

Driver Type Stand Alone

Connection (type) Quick Terminal

Strain Relief Yes

Voltage Output Interval (V) 2-74

Power Factor ʎ 0,95

Efficiency (%) 92

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,5

THD (%) 10

Power Interval for Catalogue (W) 350mA 0-25W (2-74V) 500mA 0-35W (2-72V) 700mA 0-50W (2-71V) 900mA 0-50W (2-55V) 1050mA 0-50W (2-48V)

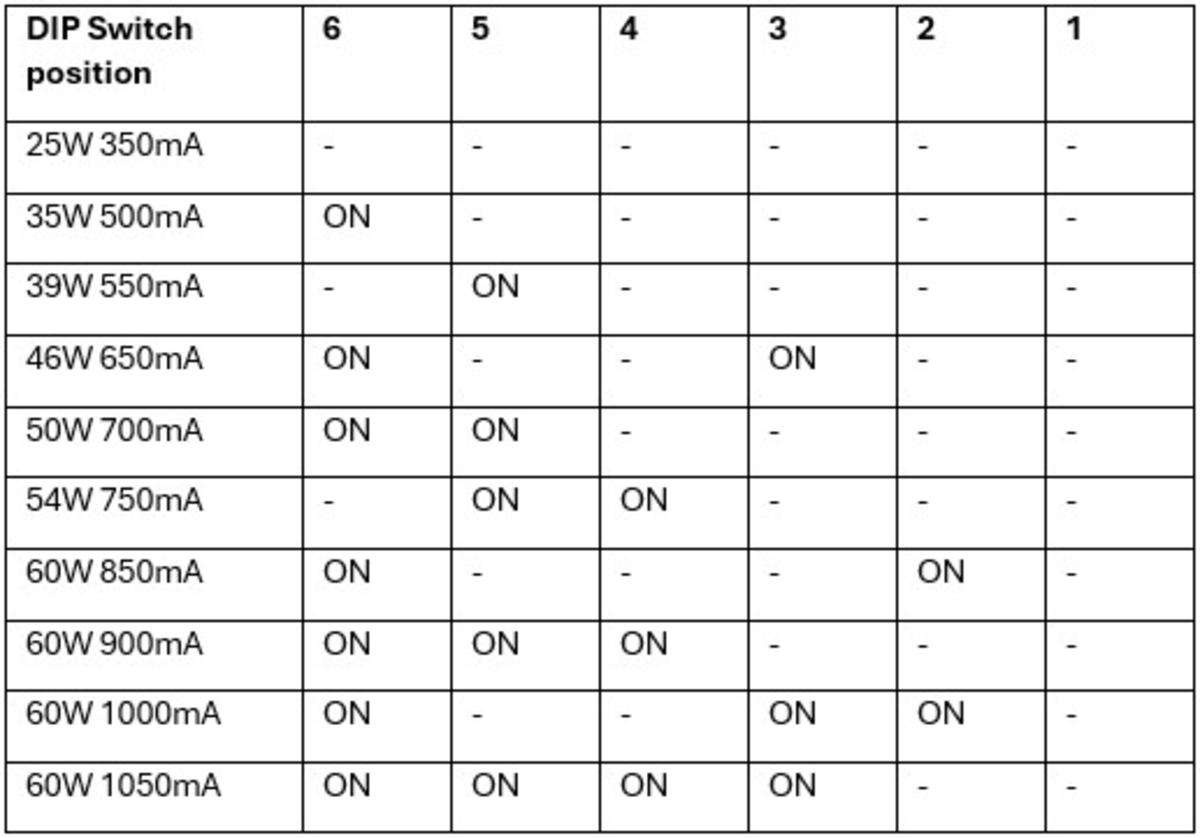

Constant Current (mA) 1000, 350, 500, 550, 650, 700, 750, 850, 900, 1050

Operating Temperature -25…+50

Max. Tc (°C) 85

Dimming secondary side Hybrid

Memory Function Power Failure Yes

Protection Against Short Circuit, Overload, Overheating 110°C

Inrush current (max/time) 10A 200µs

Mains surge protection DM (kV) 4

Mains surge protection CM (kV) 5

Fuse B10 (pcs) 9

Fuse B16 (pcs) 15

Fuse C10 (pcs) 15

Fuse C16 (pcs) 25
Color and material: Material Plastic

Color White

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Built-in, Surface mounted

Fire Safety Marks MM-mark

Approval Marks CE, S, Kema Keur, ENEC 05

Filament Test IEC 695-2-1(°C) 850

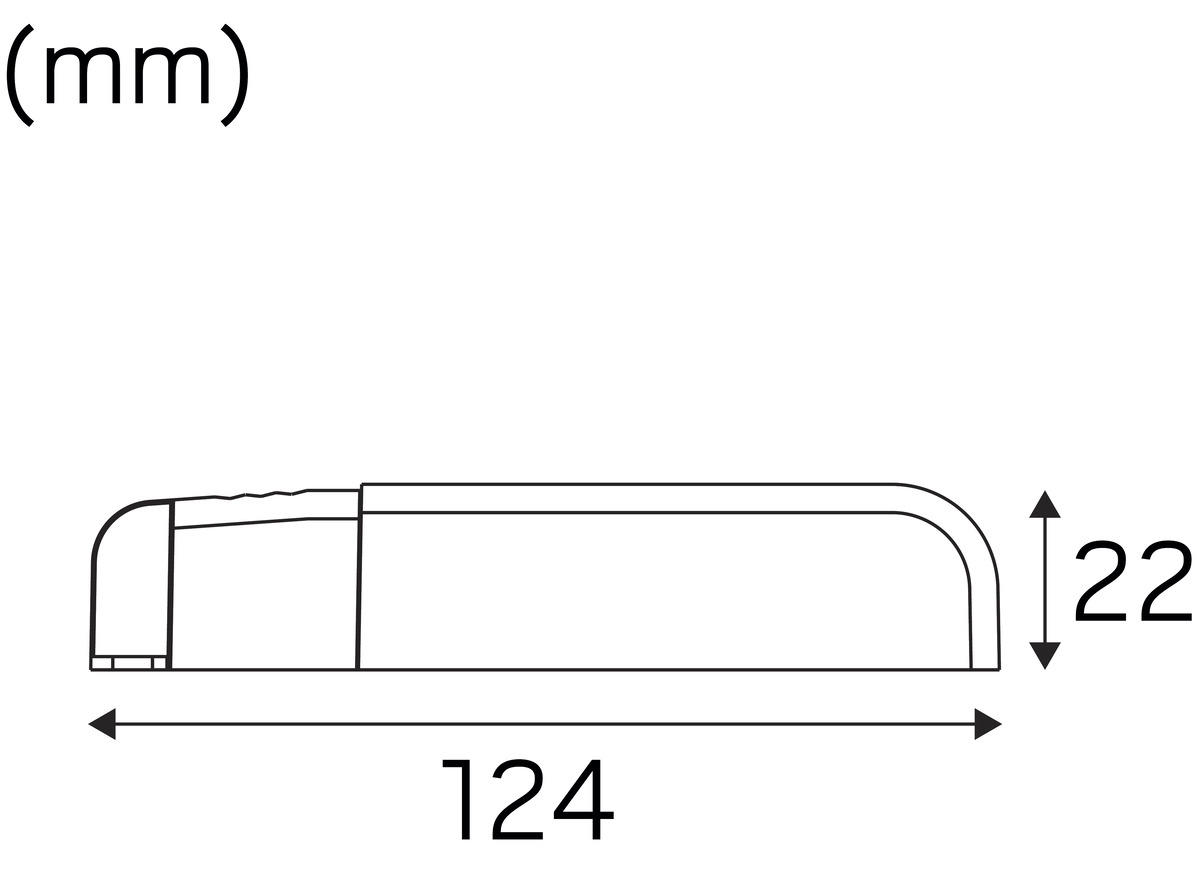

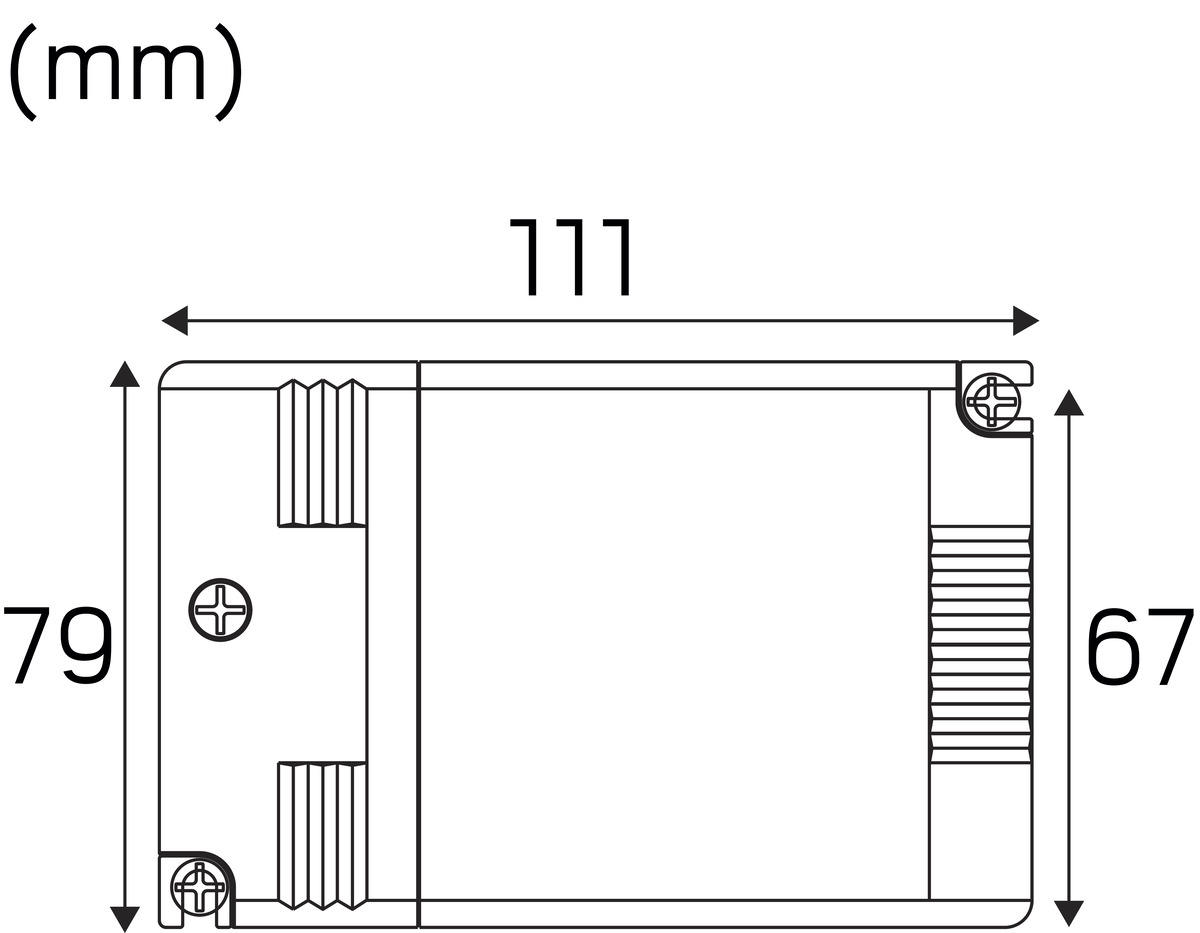

Length (mm) 124

Width (mm) 79

Height (mm) 22

Weight (kg) 0,13

Built-in Ø (mm) 85
