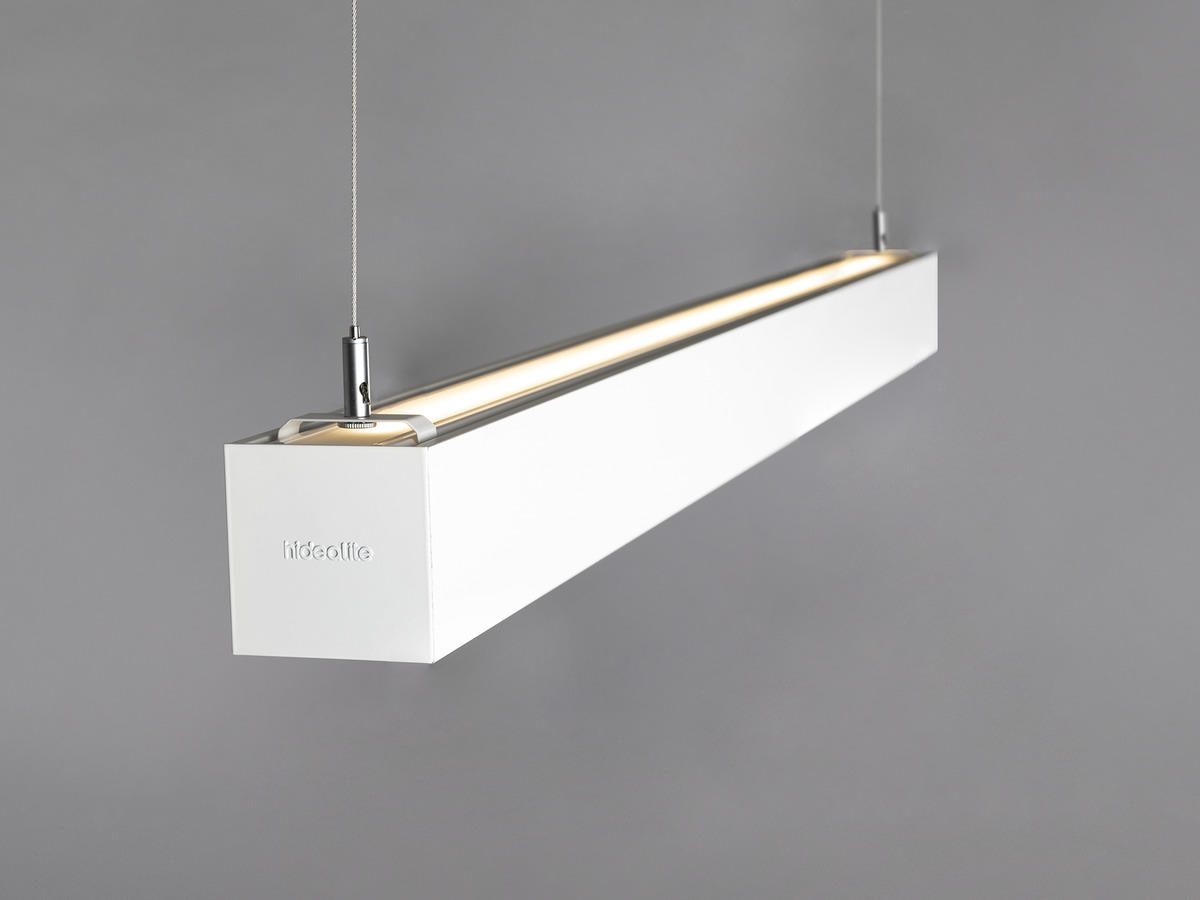

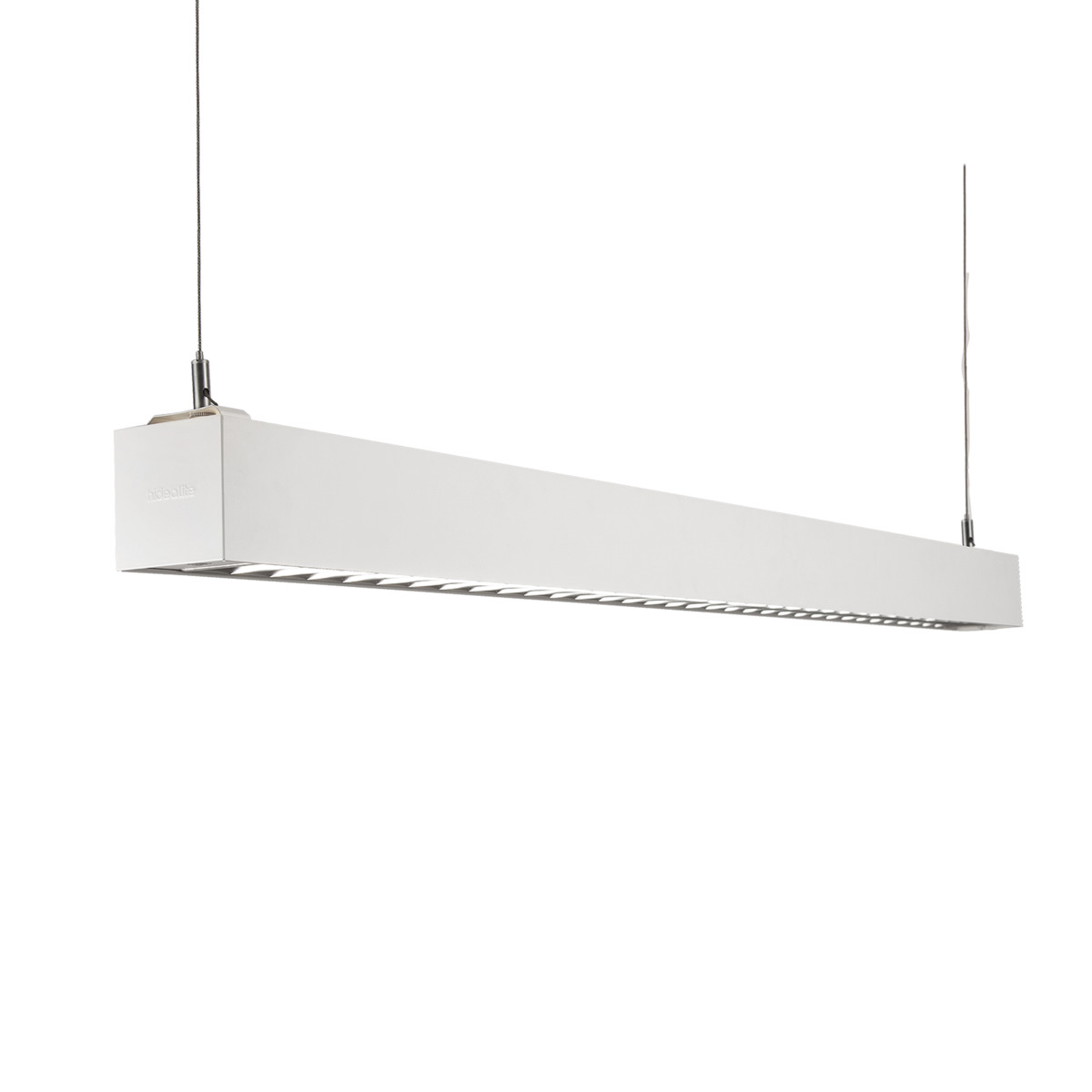

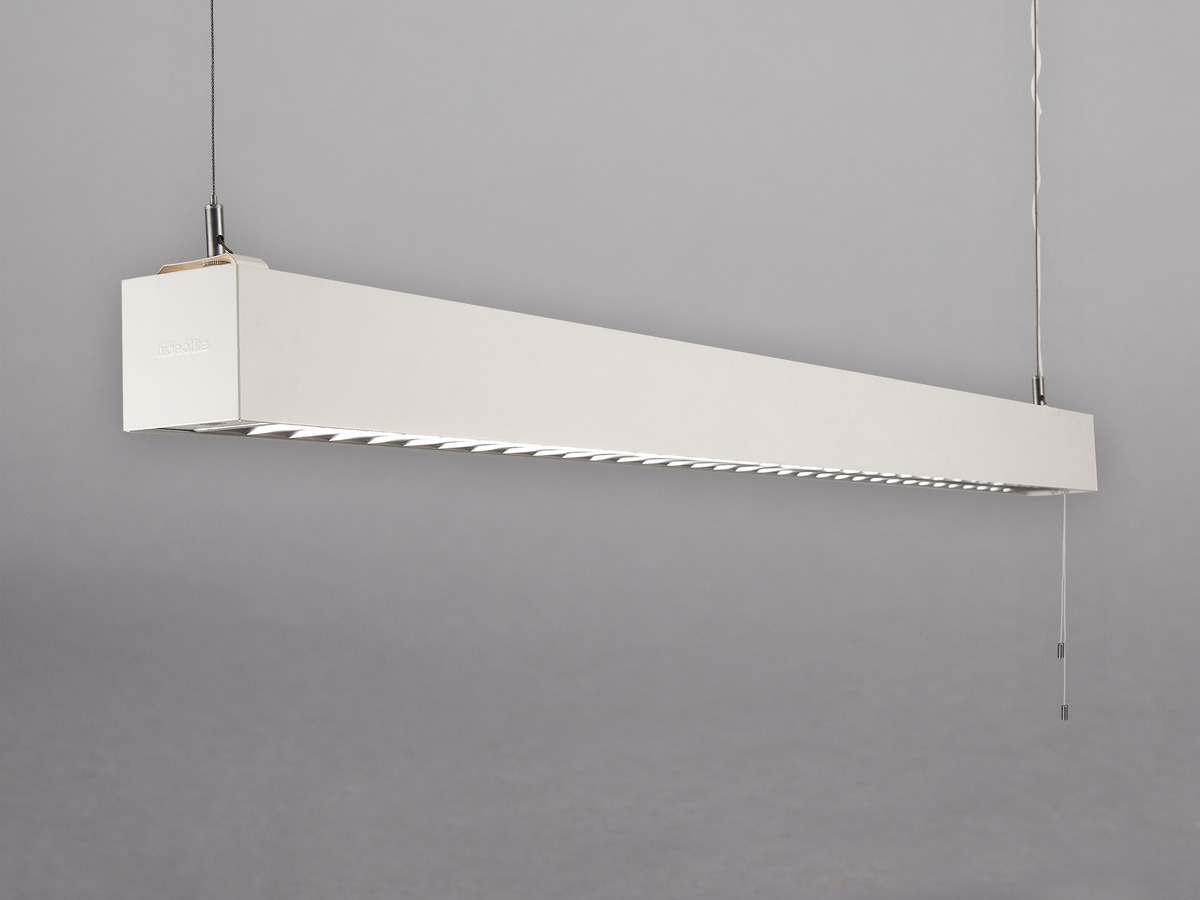

Actor Pendant

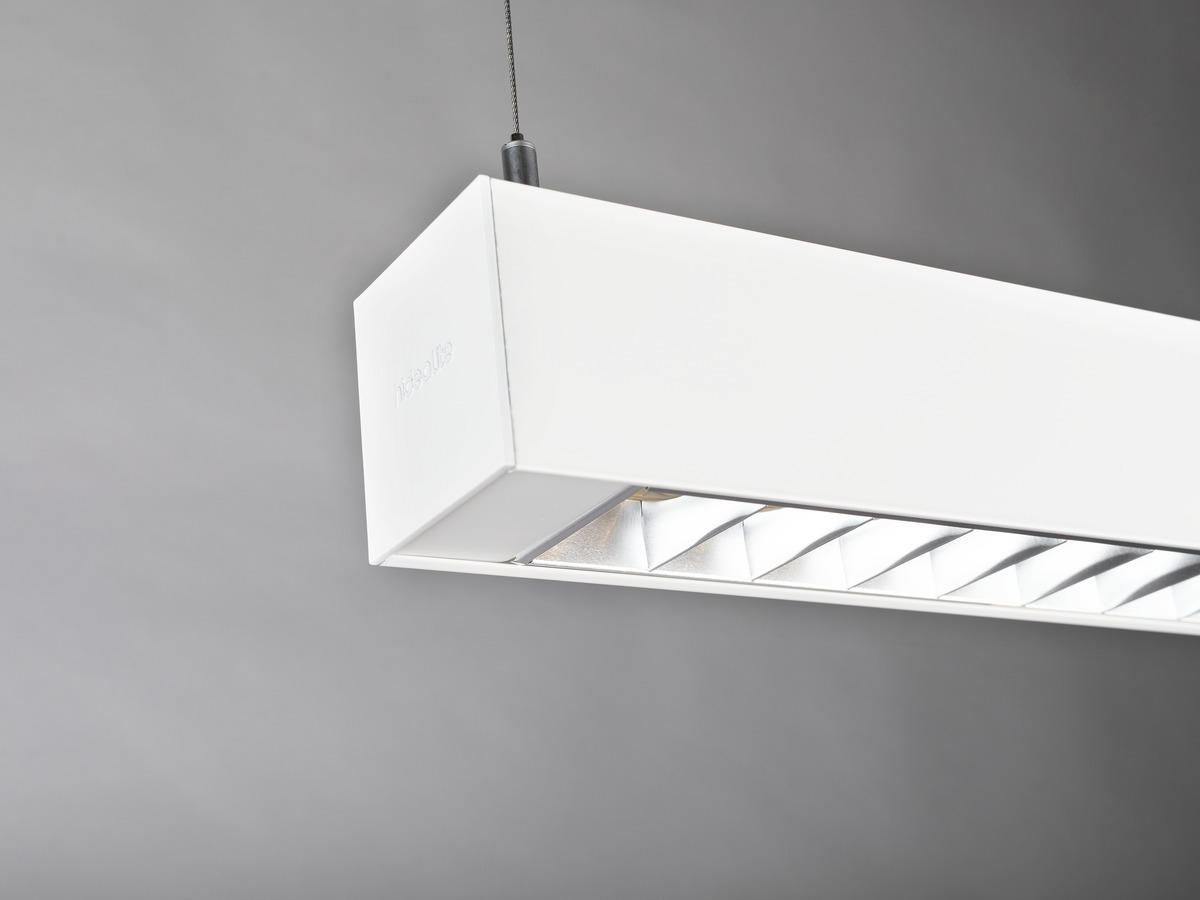

Pendant interior fixture for offices, classrooms, etc. White or black enamelled alu frame. Black or transparent cable on request. Double parabolic anti-glare shield creates a glare-free light distribution. Meets display screen and UGR requirements (UGR<19 office) under standard conditions. Light outlet 30/70 and 50/50. Controls for: On/Off, Pull dimmer, DALI/Push, PIR-sensor etc. Complete with installation accessories. Comes with a white earthed cord set and DALI with 5-pole cable and free ends.

GTIN	Item Name	Color	Colour Temperature (K)	Luminaire Lumen (lm)	Type of Dimming
7392971137148	Actor Pendant DP 830 50/50	White	3000	5750	OnOff
7392971131832	Actor Pendant DP 830 30/70	White	3000	6000	OnOff
7392971131849	Actor Pendant DP 840 30/70	White	4000	6200	OnOff
7392971131856	Actor Pendant DP 830 30/70 Dim	White	3000	6200	Pull Dimmer
7392971131863	Actor Pendant DP 840 30/70 Dim	White	4000	6250	Pull Dimmer
7392971131870	Actor Pendant DP 830 30/70 S	White	3000	6000	PIR Sensor, Pull Dimmer
7392971131887	Actor Pendant DP 840 30/70 S	White	4000	6200	PIR Sensor, Pull Dimmer
7392971135694	Actor Pendant DP 830 30/70 DALI	White	3000	6200	Push 230V, DALI 2
7392971135700	Actor Pendant DP 840 30/70 DALI	White	4000	6250	Push 230V, DALI 2
7392971137155	Actor Pendant DP 840 50/50	White	4000	5950	OnOff
7392971137162	Actor Pendant DP 830 50/50 DALI	White	3000	5750	Push 230V, DALI 2
7392971137179	Actor Pendant DP 840 50/50 DALI	White	4000	5950	Push 230V, DALI 2
7392971141497	Actor Pendant DP Black 830 30/70 Dim	Black	3000	5450	Pull Dimmer
7392971141503	Actor Pendant DP Black 840 30/70 Dim	Black	4000	5550	Pull Dimmer

Description: GTIN 7392971137148

Item Name Actor Pendant DP 830 50/50

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 5750

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 3

Luminous Intensity (cd) 1500

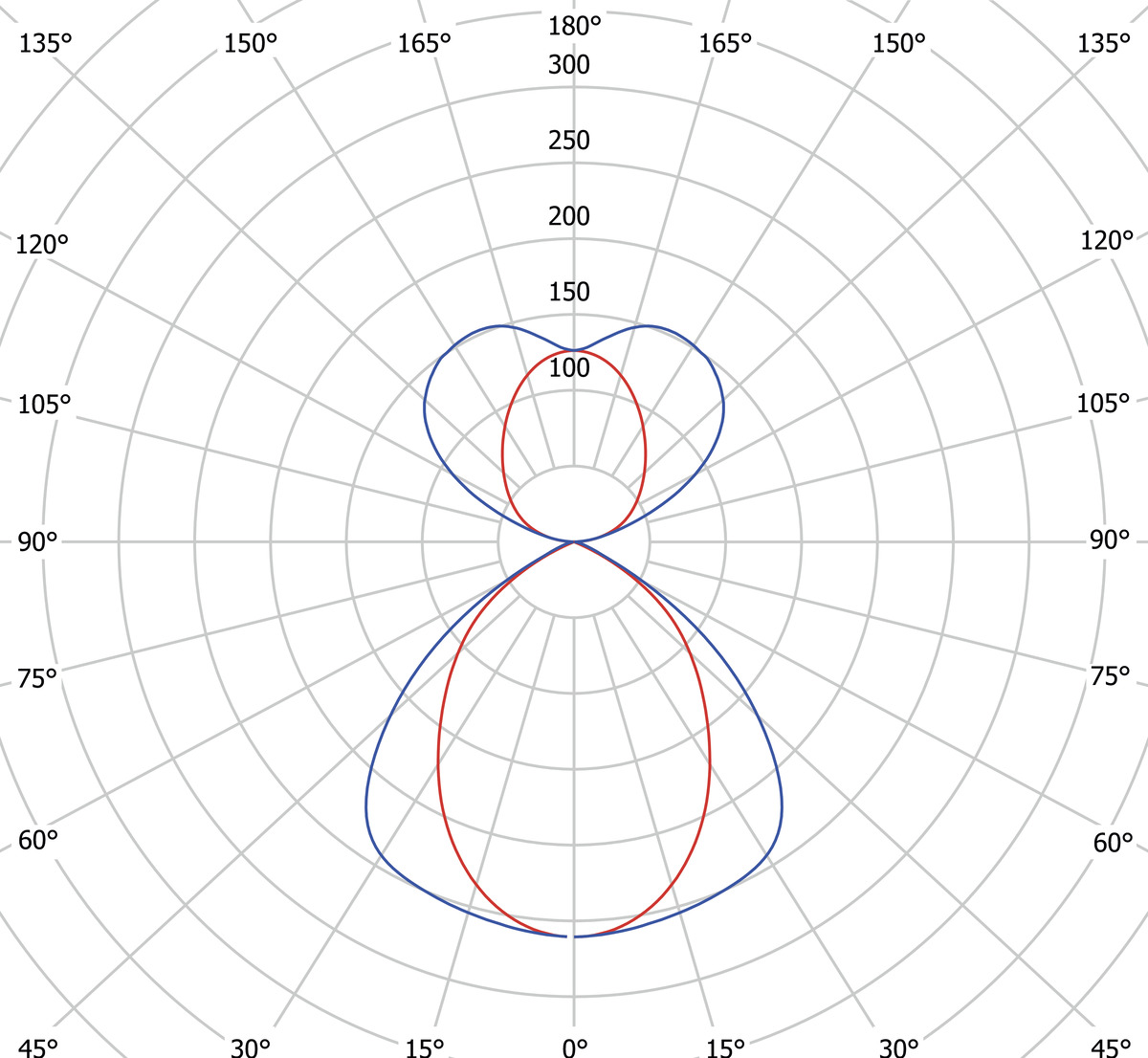

Beam Angle (°) 105

Light sharing Symmetric

Light Outlet 50/50

Number of Lamps (pcs) 2

Number of LED (pcs) 192

Life Time L80 100 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L90

Lumen maintenance 100 000h L80

LLMF @ 50 000h 0,9

LLMF @ 100 000h 0,8

Life Time Driver 50 000h/10%
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 46

Power Luminaire (W) 48

System Power (W) 48

Efficiency Luminaire (lm/W) 120

Efficiency System (lm/W) 120

Containing light source energy efficiency class (EU) 2019/2015 C
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Driver Manufacturer Osram

Connection (type) Cord Set

Length Connection (cm) 250

Connection (mm2) 3x0,75

Through Wiring No

Strain Relief Yes

Power Factor ʎ 0,95

Operating Temperature -15...+40

Max. Tc (°C) 50

Memory Function Power Failure No

Fuse B10 (pcs) 8

Fuse B16 (pcs) 15

Fuse C10 (pcs) 15

Fuse C16 (pcs) 29
Color and material: Material Diecasted, Extruded, Aluminium, Plastic

Color White

Environmental Assessment SundaHus, Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class I

Installation Pendant

Approval Marks CE

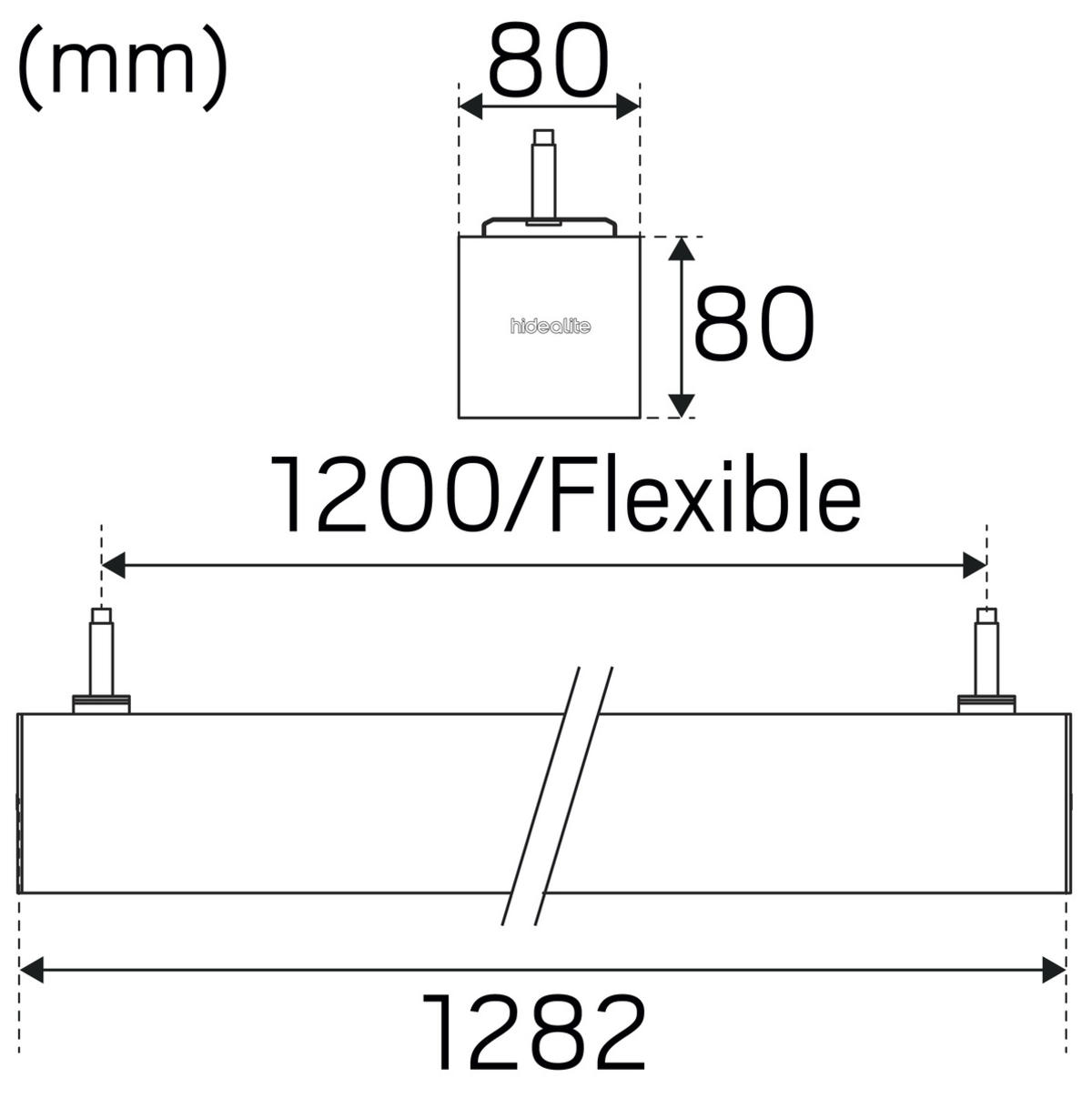

Length (mm) 1282

Width (mm) 80

Height (mm) 80

Weight (kg) 3,91

Actor Basic Pendant

Dimmable basic luminaire with 50/50 light outlet, for offices and smaller premises. Body and end caps of white enamelled aluminium. Microprismatic louvre creates a highly glare-free downward light distribution and the uplight creates an indirect and shadow-free ambient light. A pull dim switch for common dimming of up and downlight with memory function to keep the latest setting after power cut. Complete with mounting accessories for several types of ceiling and a 2.5m cord set with earthed plug.

Actor Ceiling

Luminaire for surface mounting in fixed ceiling or for recessed, without accessories, in ceiling with visible support profile. The LED light source is integrated with the anti-glare shield which is lowered and creates plenty of space for installation. Adapted for recessed installation without accessories in a ceiling with visible support profile. Provides a discrete and elegant impression in the ceiling. Meets screen and UGR requirements in standard conditions. Set the light level for different scenes via DALI/Push or control the lighting On/Off via an external switch.

Sky MP

LED panel with microprismatic louvre, excellent luminous comfort that complies with display monitors and UGR requirements (UGR<19 offices) under standard conditions. Recessed mounting in suspended ceilings with visible support profile, spacer frame for surface mounting. Selectable colour temperature via DIP-switch ColourTemp. Mains dimming driver for phase dimming or DALI-2. Available with Q-Box Mini or Linect. FDIM version comes with 2m pre-installed cord set, available in a 5-pack for quick installation.

Liteline IP44 1200

IP44 luminaire with high lumen output and very good efficiency. Folding patented end caps. Prismatic cup with opal film for even light. Two colour temperatures, as On/Off, DALI/Push with corridor FUNCTION, presence sensor w or w/o corridor function. 5-pole push-in terminal with through wiring, one bushing in each end, two in the middle where one is centred. 2xT has through wiring with quick terminals at each end cap. Adjustable lumen output and wattage via DIP-Switch Power.

Actor Pendant

Actor Pendant DP 830 50/50

Accessories

Ceiling cup for box/surface mounting White

Ceiling cup recessed w. spring Black

Ceiling cup recessed w. spring White

Ceiling cup for box/surface mounting Black
