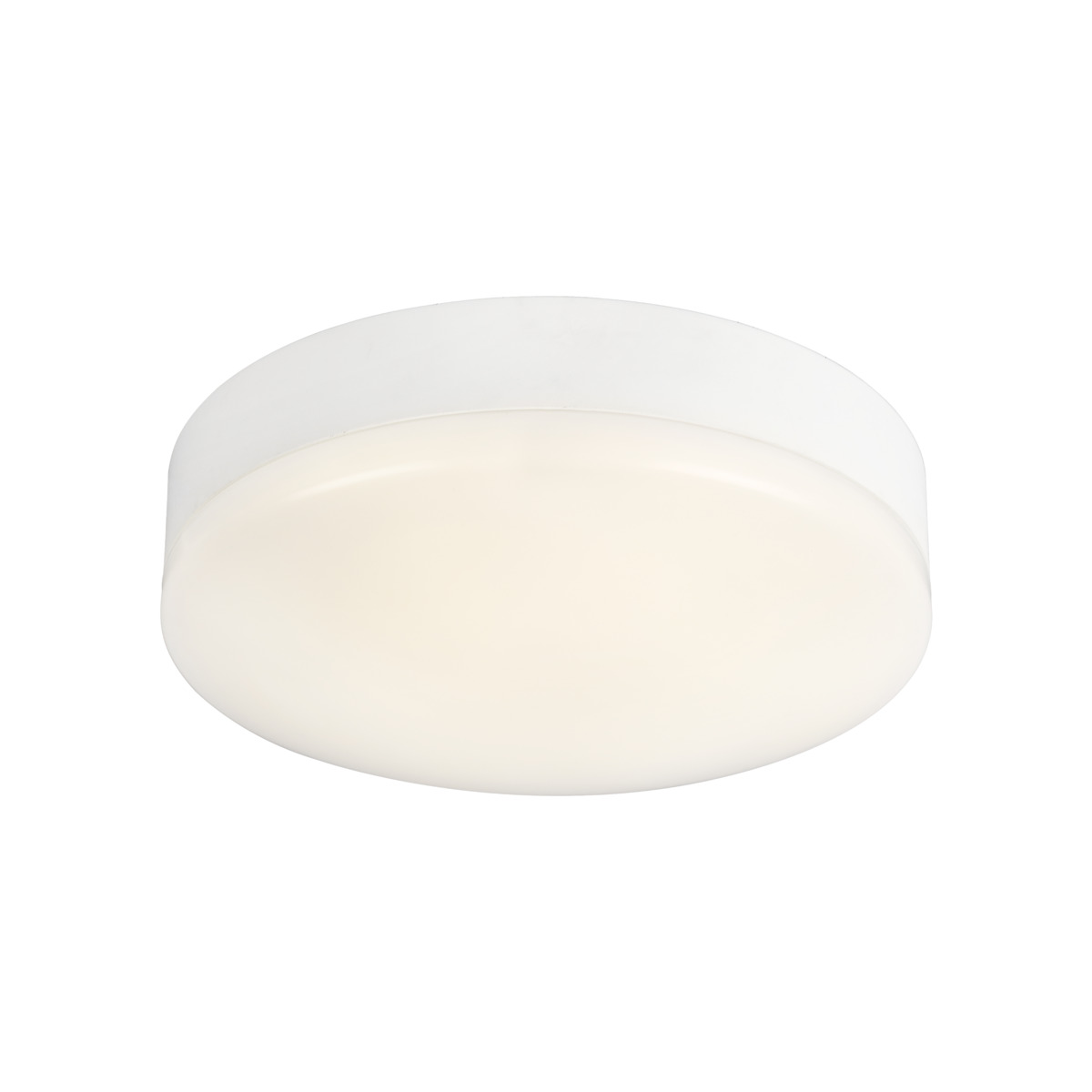

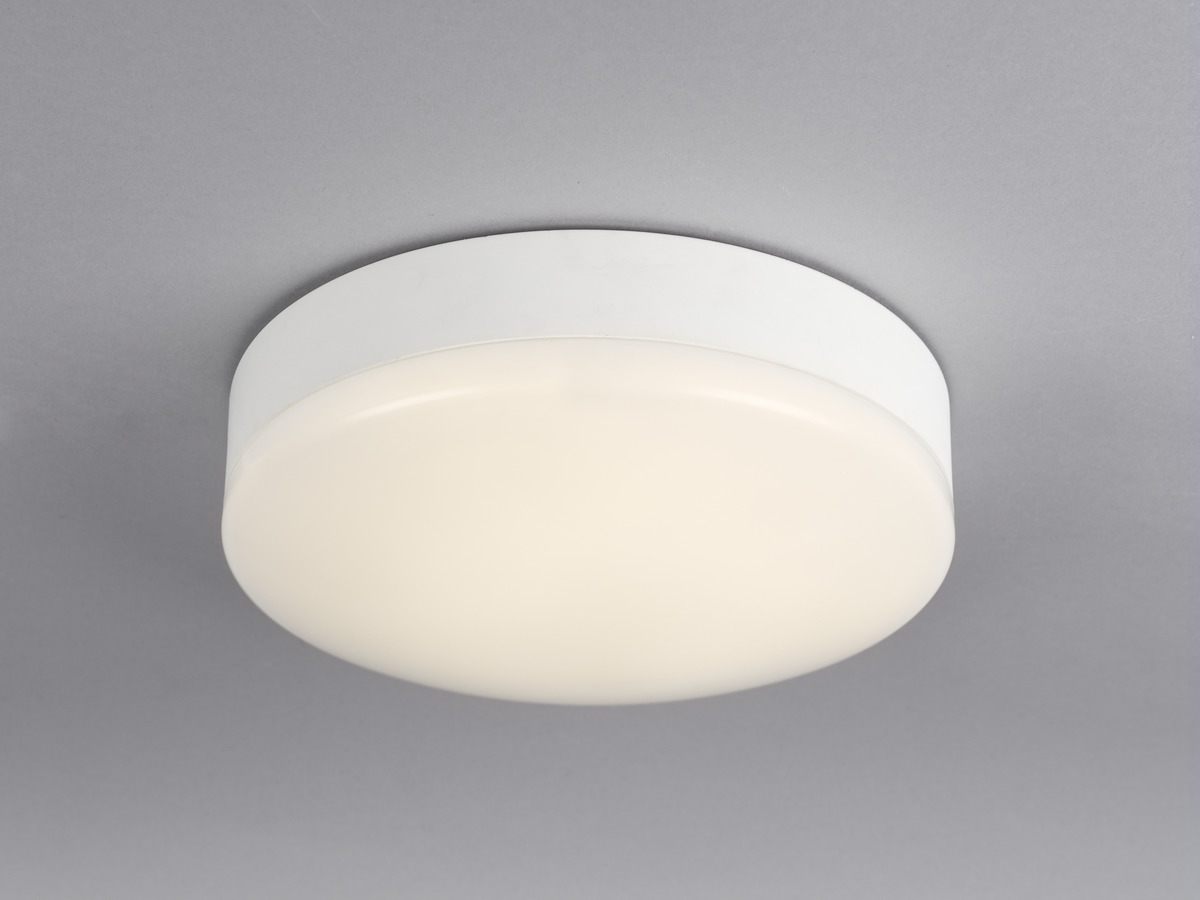

Moon Basic

Adjusted for concealed or surface mounted cable routing

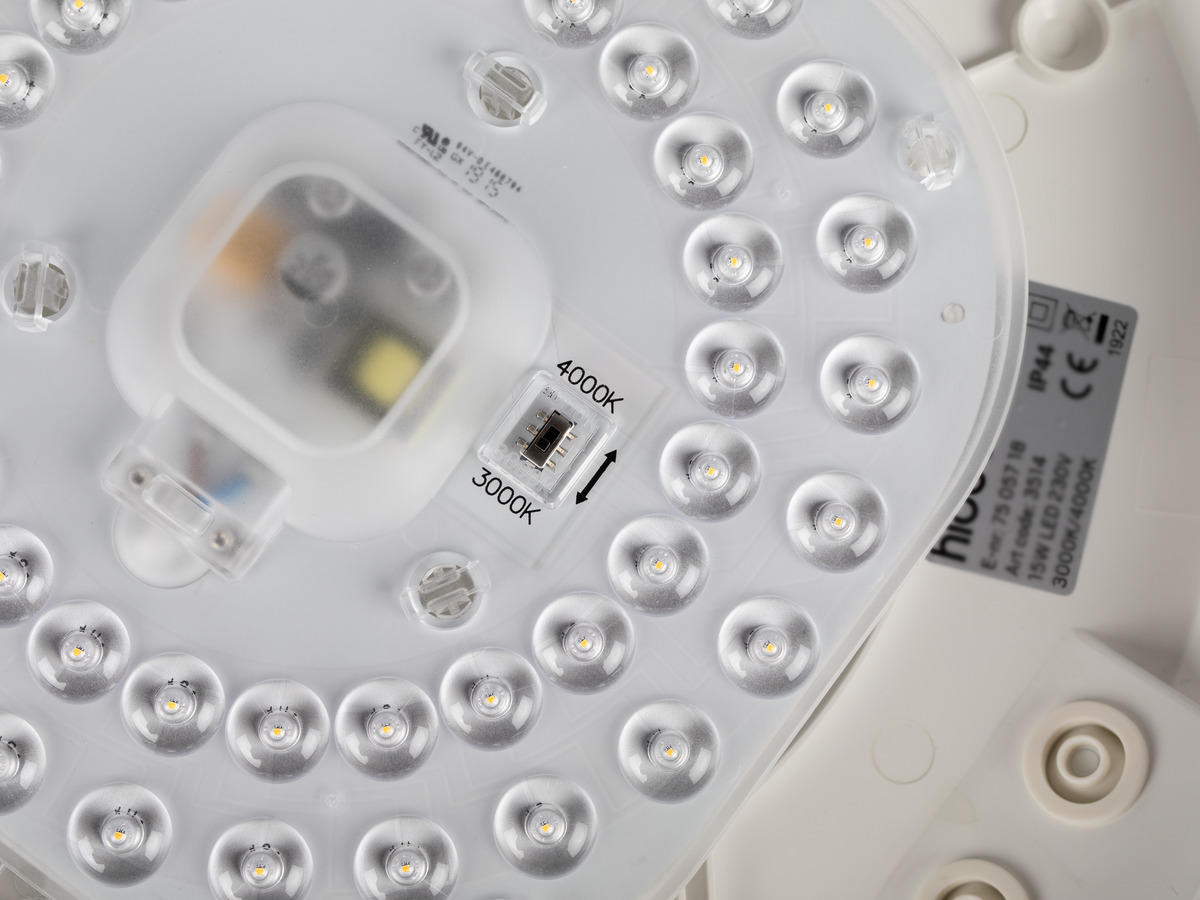

Selectable colour temperature via DIP-Switch ColourTemp
Microwave sensor for presence control, settings via DIP-switch for range, dusk control and time delay

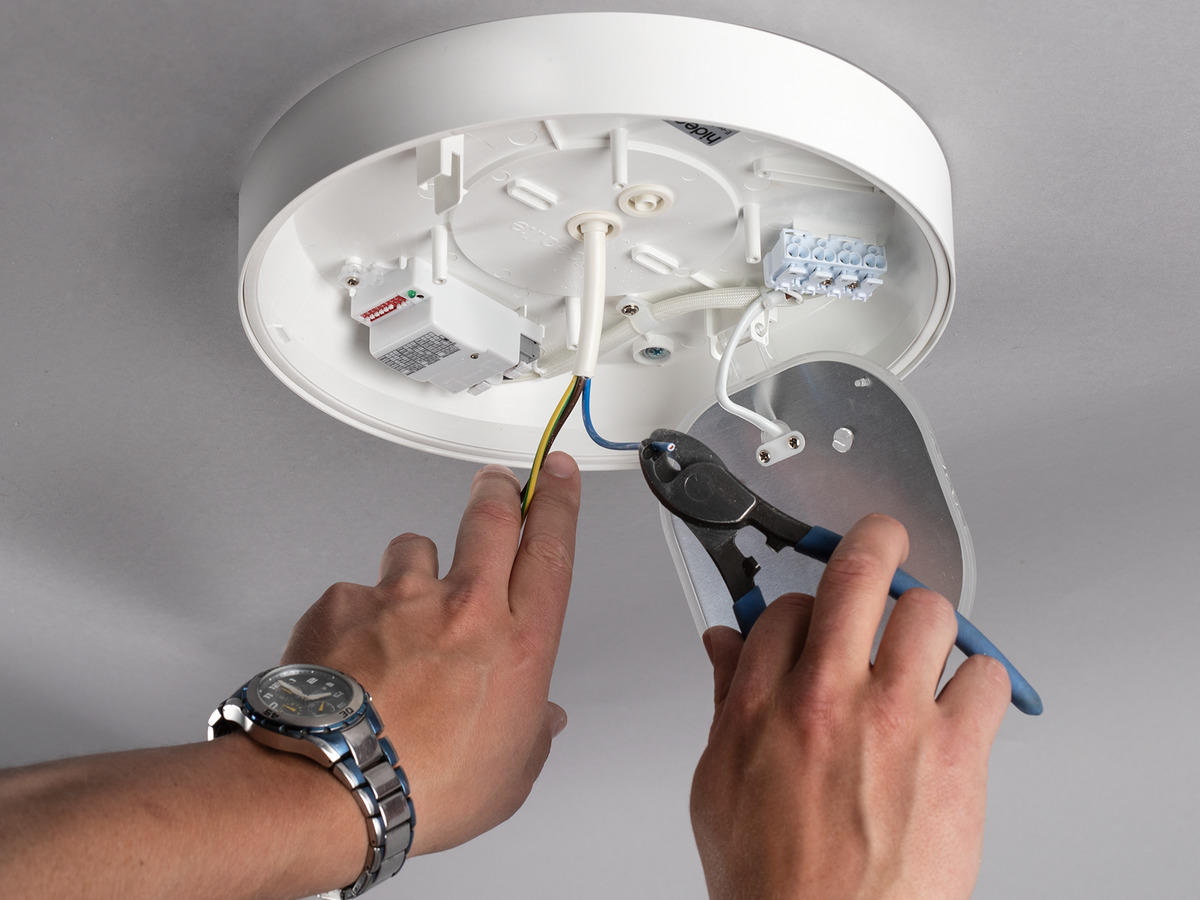

Easily installed base plafond, LED module with integrated driver and selectable colour temperature via DIP-Switch ColourTemp 3000K or 4000K. Plenty of space in the fitting and possibility for surface-mounted cable routing. For installation flat on the ceiling or wall indoors in private or public environment. On/Off model with or without sensor. Simple installation, long life time and minimal maintenance make the plafond an economical and environmentally-friendly choice.

GTIN	Item Name	Luminaire Lumen (lm)	Type of Dimming
7392971137490	Moon Basic 255	900	OnOff
7392971137513	Moon Basic 255 S	900	Microwave Sensor
7392971137506	Moon Basic 320	1400	OnOff
7392971137520	Moon Basic 320 S	1400	Microwave Sensor

Description: GTIN 7392971137490

Item Name Moon Basic 255

Warranty 5 years
Light Technical Data: Luminaire Lumen (lm) 900

Light Source LED

Light Source Included Yes

Replaceability Non-replaceaable LED, Replaceable Control gear by professional

LED Colour Warm White

Colour Temperature (K) 3000, 4000

Colour Rendering Index (Ra) >80

Colour Consistency (SDCM) 4

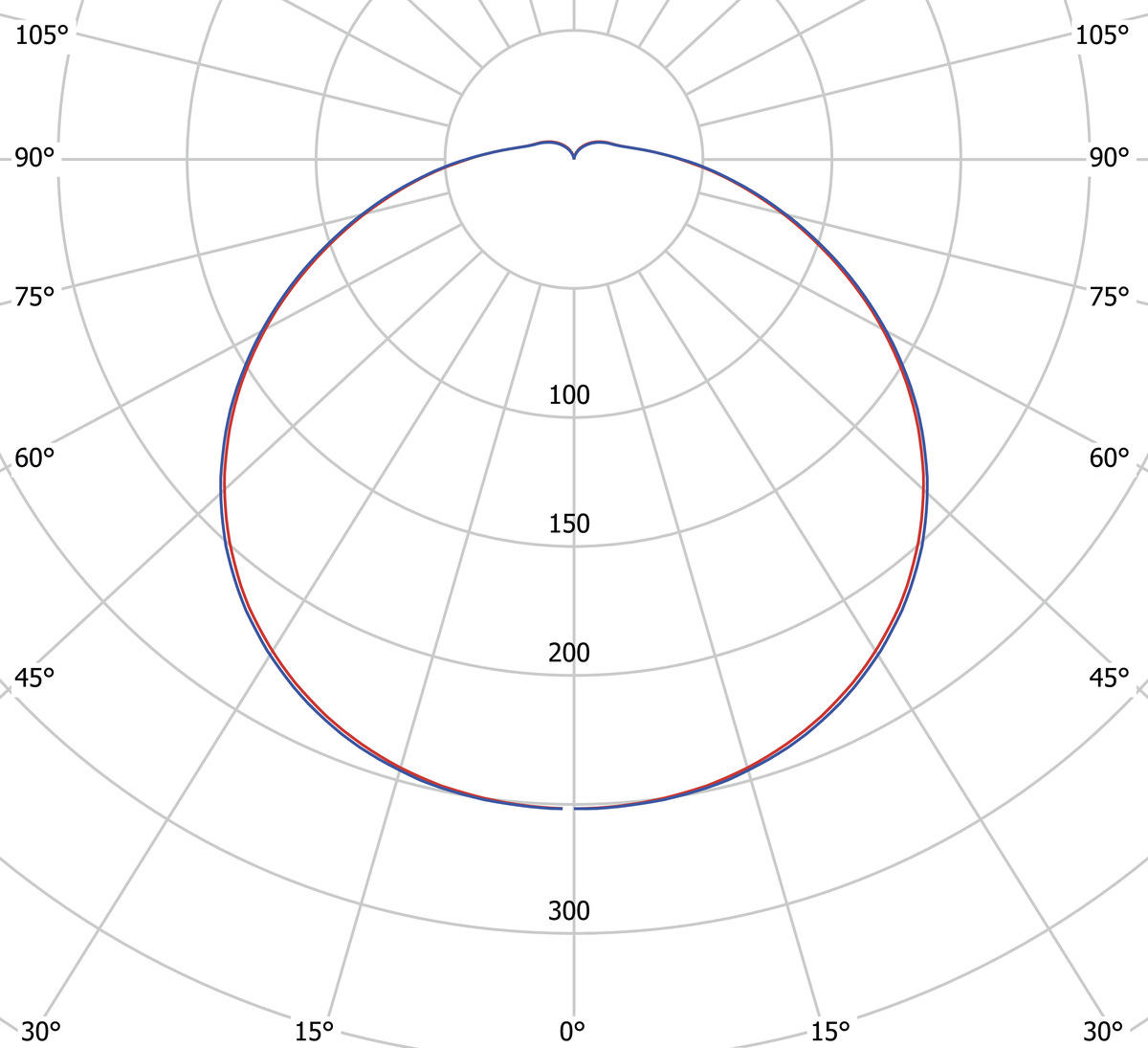

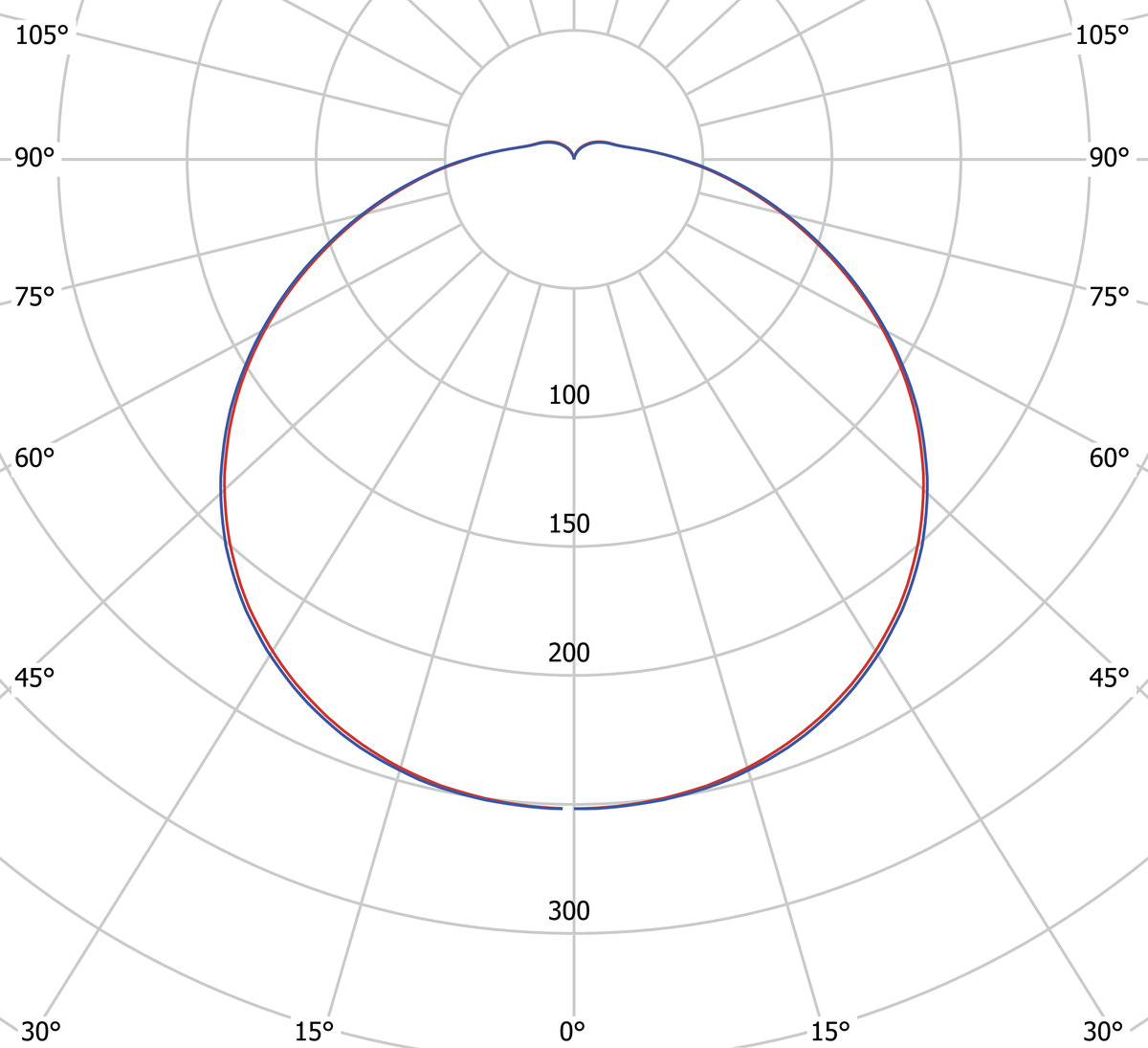

Luminous Intensity (cd) 230

Beam Angle (°) 120

Light sharing Symmetric

Light Outlet Direct

Number of Lamps (pcs) 1

Number of LED (pcs) 24

Life Time L70 50 000h Ta 25°C

Nominel Life Time (h) 50000

Lumen maintenance 50 000h L72

LLMF @ 50 000h 0,72

Life Time Driver 50 000h/10%

Flicker (PstLM) 0,02

Stroboscopic effect (SVM) 0,009
Technical data: Adjustable No

Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60

Power LED (W) 9

Power Luminaire (W) 10

System Power (W) 10

Efficiency Luminaire (lm/W) 90

Efficiency System (lm/W) 90

Containing light source energy efficiency class (EU) 2019/2015 F
Operation and Connection: Dimmable No

Type of Dimming OnOff

Driver Included Yes

Driver Model Constant Current

Driver Type Built-in

Connection (type) Quick Terminal

Connection (mm2) 3x0,5-2,5

Through Wiring Yes

Strain Relief Yes

Efficiency (%) 90

Operating Temperature -20…+40

Max. Tc (°C) 85

Protection Against Short Circuit, Overheating 120°C, Overload

Fuse B10 (pcs) 35

Fuse B16 (pcs) 55

Fuse C10 (pcs) 44

Fuse C16 (pcs) 70
Color and material: Material Plastic

Color White

Environmental Assessment Byggvarubedömningen
Measurement and installation: Operating Environment Indoor / wet locations

IP Degree of Protection 44

Protection Class II

Installation Surface mounted

Mounting Installation Screw Mounting

Approval Marks CE

Impact Strength IK06

Filament Test IEC 695-2-1(°C) 650

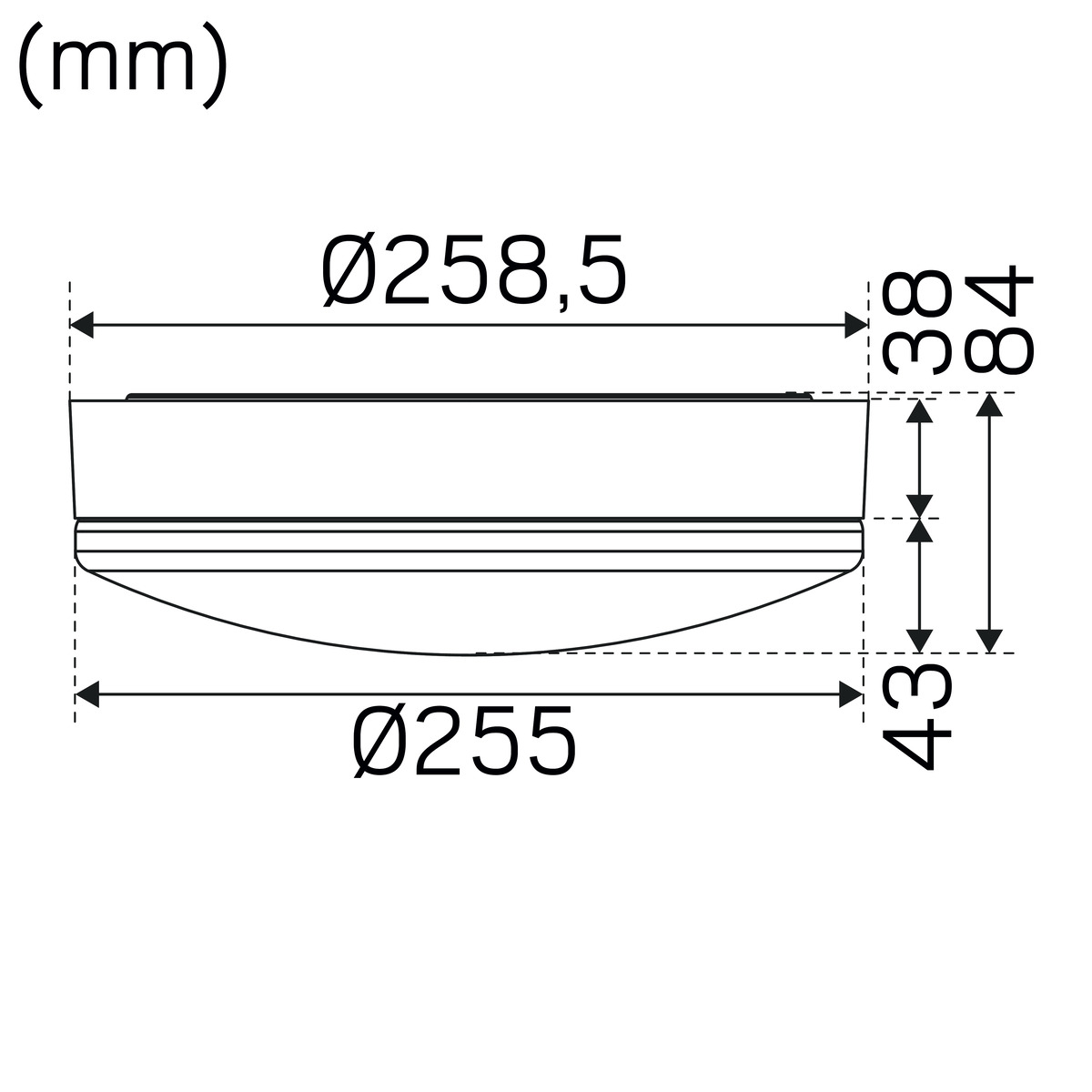

Height (mm) 84

Diameter (mm) 259

Weight (kg) 0,45

Spare parts

If you need spare parts, contact our customer support

X332
Cover Moon Basic 255 X272
