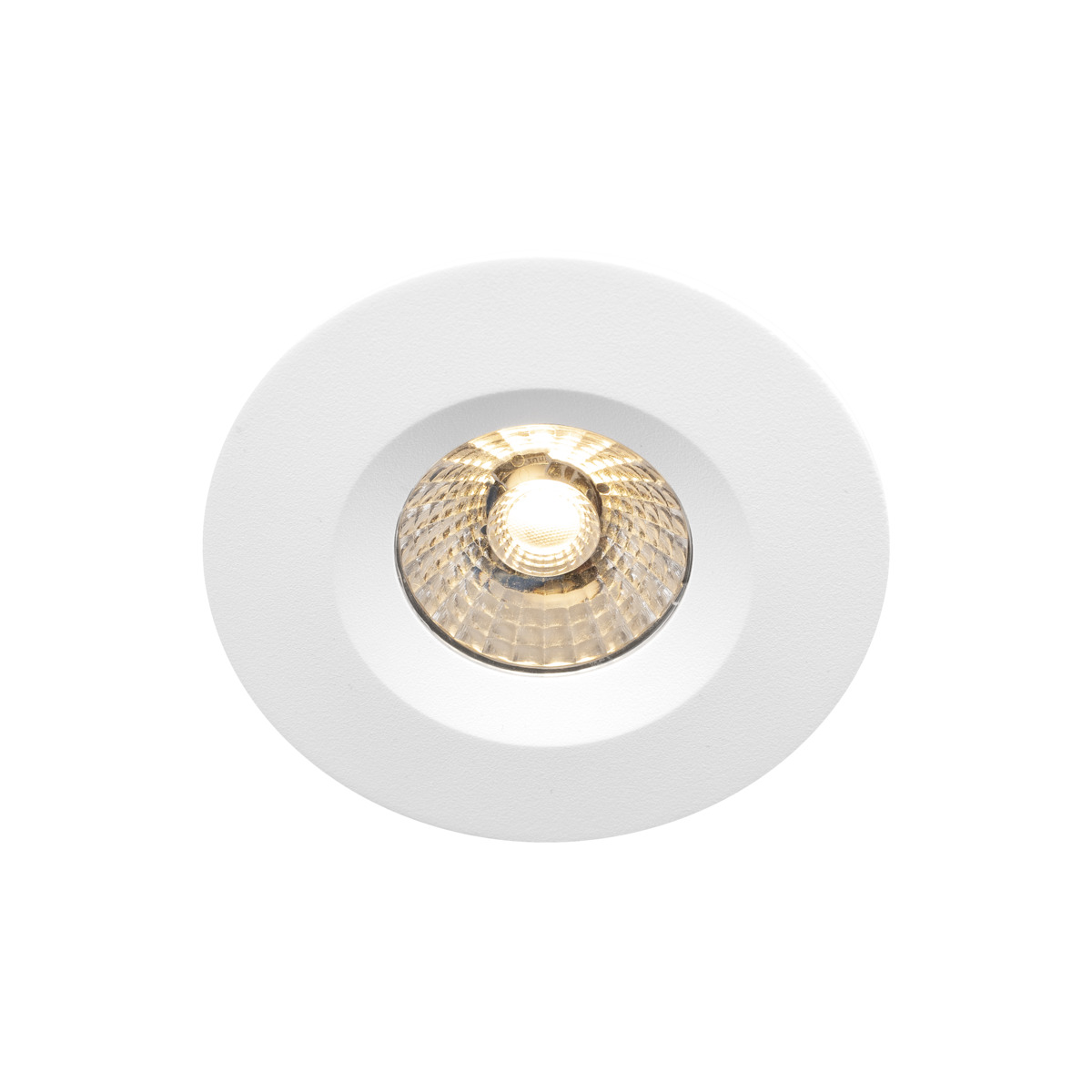

Comfort G4 Quick ISO
- Low-build, perfect for secondary spaced boarding 28mm with 13mm plaster
- Approved for installation directly against insulation
- Can be installed both indoors and outdoors

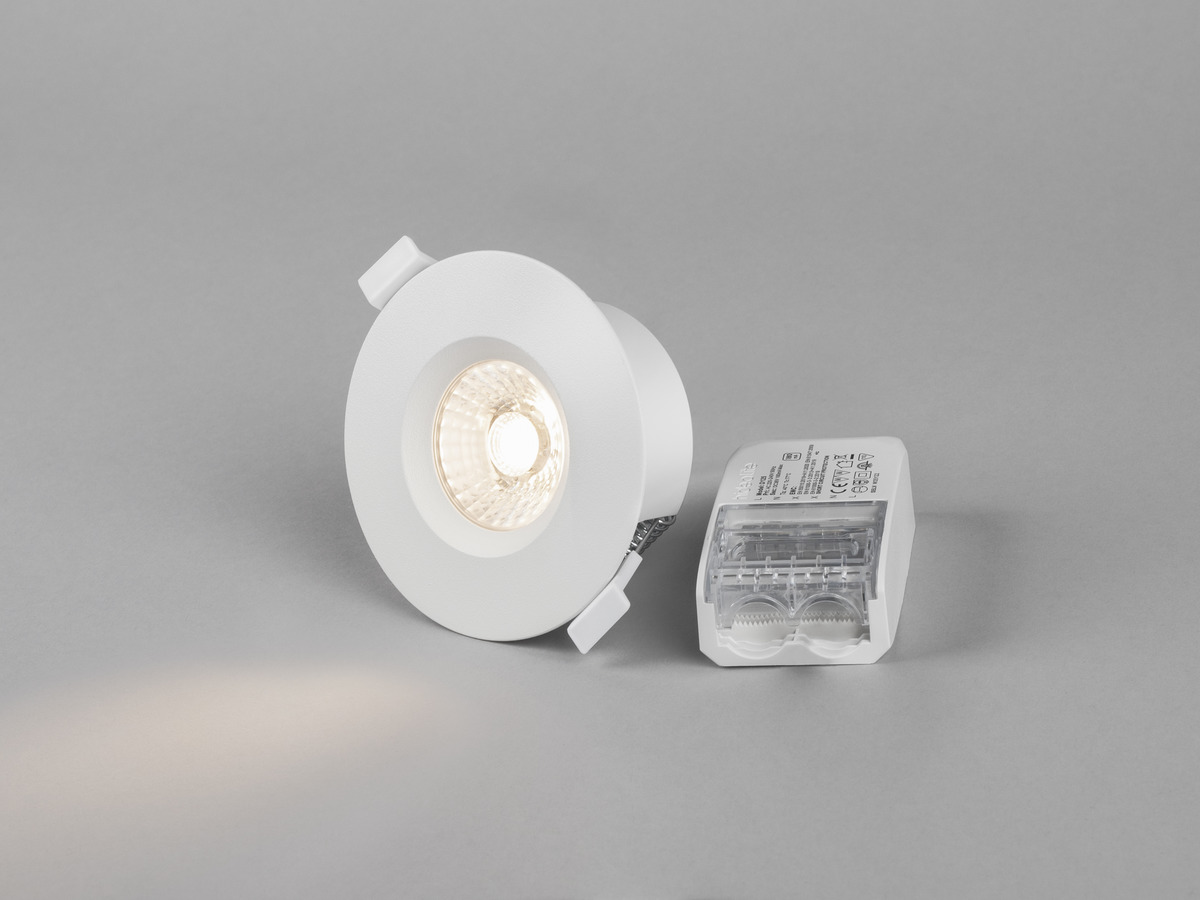

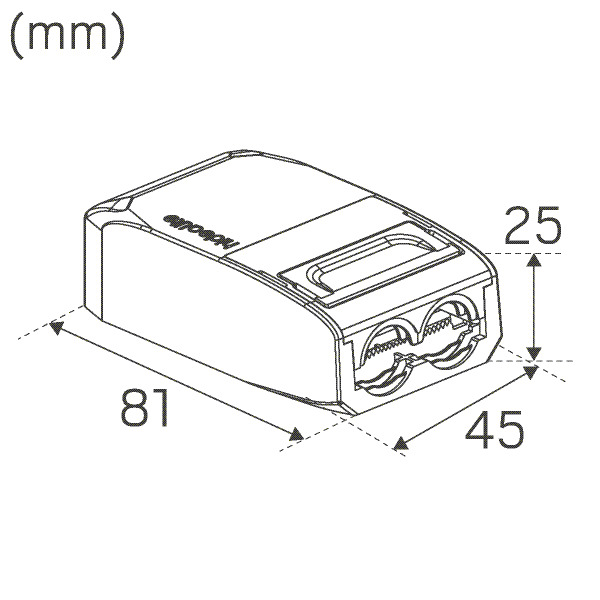

High-performance downlight made for a sustainable future – easily dismantled via a module system to save time when recycling. Comfort G4 Quick ISO is a downlight with lens technology, high lumen output and ISO cover for installation in 28mm secondary spaced boarding and approved for installation directly against insulation. Easily installed with very good colour rendering, Ra>95, that is just as good indoors as outdoors. Driver with cover that can be adapted for cable or flex hose 16mm. Comes with 3-pole push-in terminal for through wiring and strain relief. This luminaire is dimmable with the most commonly available dimmers on the market.
| Variants | GTIN | Item Name | Colour Temperature (K) | Luminaire Lumen (lm) |
|---|---|---|---|---|
|
7392971146492 | Comfort G4 Quick ISO White 36° 3000K | 3000 | 690 |
|
7392971146478 | Comfort G4 Quick ISO White 36° Tune | 2700 | 520 |
|
7392971146485 | Comfort G4 Quick ISO White 36° 2700K | 2700 | 650 |
Comfort G4 Quick ISO White 36° 3000K
-
GTIN 7392971146492Item Name Comfort G4 Quick ISO White 36° 3000KWarranty 5 years
- Light Technical Data
-
Luminaire Lumen (lm) 690Light Source LEDLight Source Included YesReplaceability Replaceable LED by professional, Replaceable Control gear by professionalLED Colour Warm WhiteColour Temperature (K) 3000Colour Rendering Index (Ra) >98Colour Consistency (SDCM) 3Luminous Intensity (cd) 1550Beam Angle (°) 36Light sharing SymmetricLight Outlet DirectNumber of Lamps (pcs) 1Number of LED (pcs) 1Life Time L80 100 000h Ta 25°CNominel Life Time (h) 100000Lumen maintenance 50 000h L90Lumen maintenance 75 000h L86Lumen maintenance 100 000h L82LLMF @ 50 000h 0,9LLMF @ 100 000h 0,82Life Time Driver 50 000h/10%
- Technical data
-
Adjustable NoVoltage (type) ACVoltage Interval (V) 220...240Voltage Nominal (V) 230Line Frequency (Hz) 50, 60Power LED (W) 6,5Power Luminaire (W) 7,5System Power (W) 7,5Efficiency Luminaire (lm/W) 92Efficiency System (lm/W) 92Containing light source energy efficiency class (EU) 2019/2015 E
- Operation and Connection
-
Dimmable YesType of Dimming Trailing EdgeDriver Included YesDriver Model Constant CurrentDriver Type Stand AloneDriver Manufacturer Hide-a-liteConnection (type) Quick TerminalConnection (mm2) 3x0,5-1,5Through Wiring YesStrain Relief YesPower Factor ʎ 0,95Efficiency (%) 80Power loss (W) 1Leakage current (mA) (at 230 V, 50 Hz, full load) 0,05THD (%) 20Constant Current (mA) 180Operating TemperatureMax. Tc (°C) 85Dimming secondary side AMMemory Function Power Failure NoInrush current (max/time) 2,5A 30µsFuse B10 (pcs) 55Fuse B16 (pcs) 87Fuse C10 (pcs) 91Fuse C16 (pcs) 146
- Color and material
-
Material Diecasted, AluminiumColor WhiteEnvironmental Assessment ByggvarubedömningenAvailable in special color Yes
- Measurement and installation
-

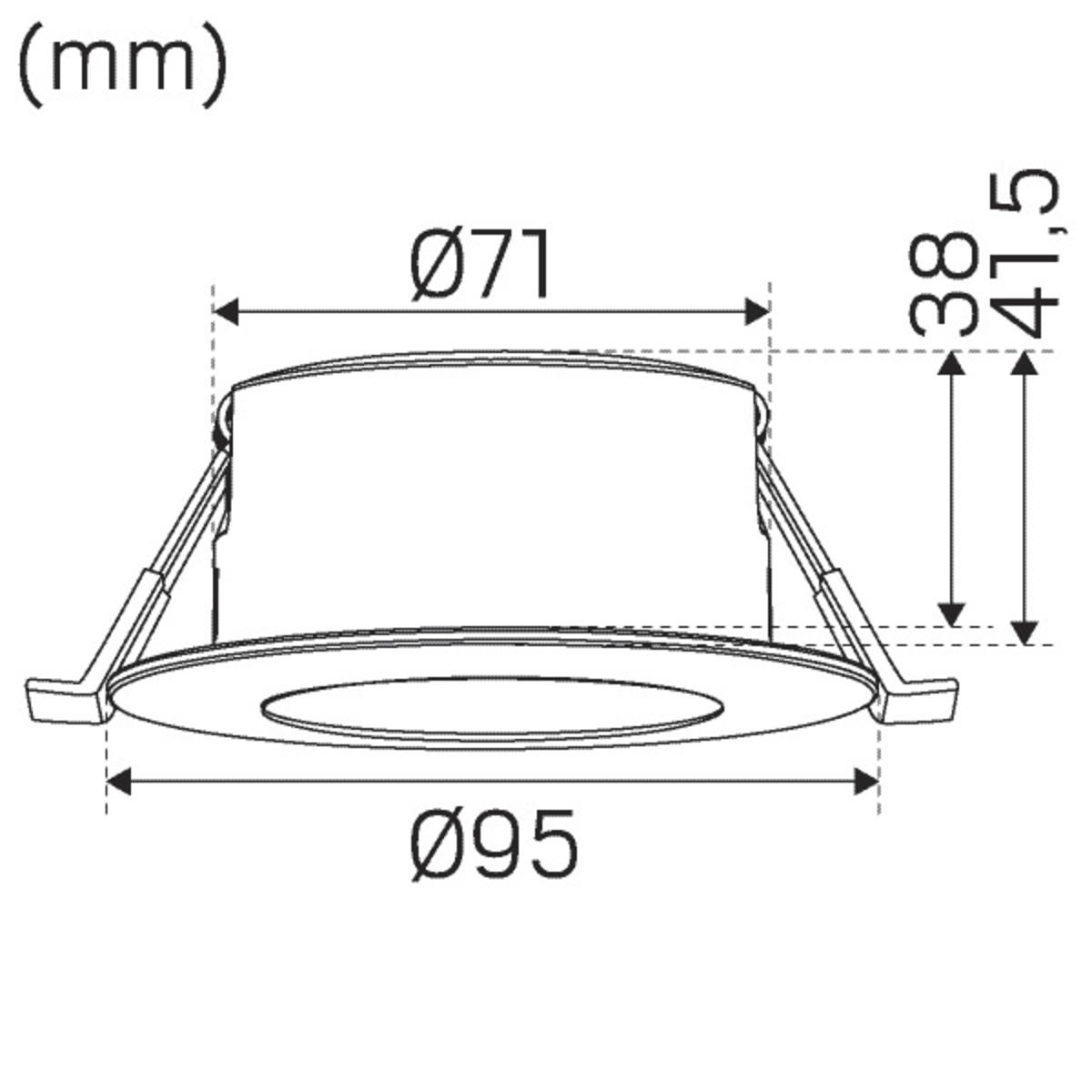

Operating EnvironmentIP Degree of Protection 44Protection Class IIInstallation Built-inMounting Installation Mounting SpringCeiling Thickness Interval (mm) 3-26Fire Safety Marks Approved for installation against insulationApproval Marks CE, a Hide-a-lite ChoiceHeight (mm) 41Diameter (mm) 95Weight (kg) 0,295Min. Built-in (mm) 170x120x38Height Recessed Part (mm) 38Height Exterior Part (mm) 3Built-in Ø (mm) 73-85
Spare parts
If you need spare parts, contact our customer support
- LED-Module Comfort G4 3000K X253
- Driver D125 FDIM 180mA X259
