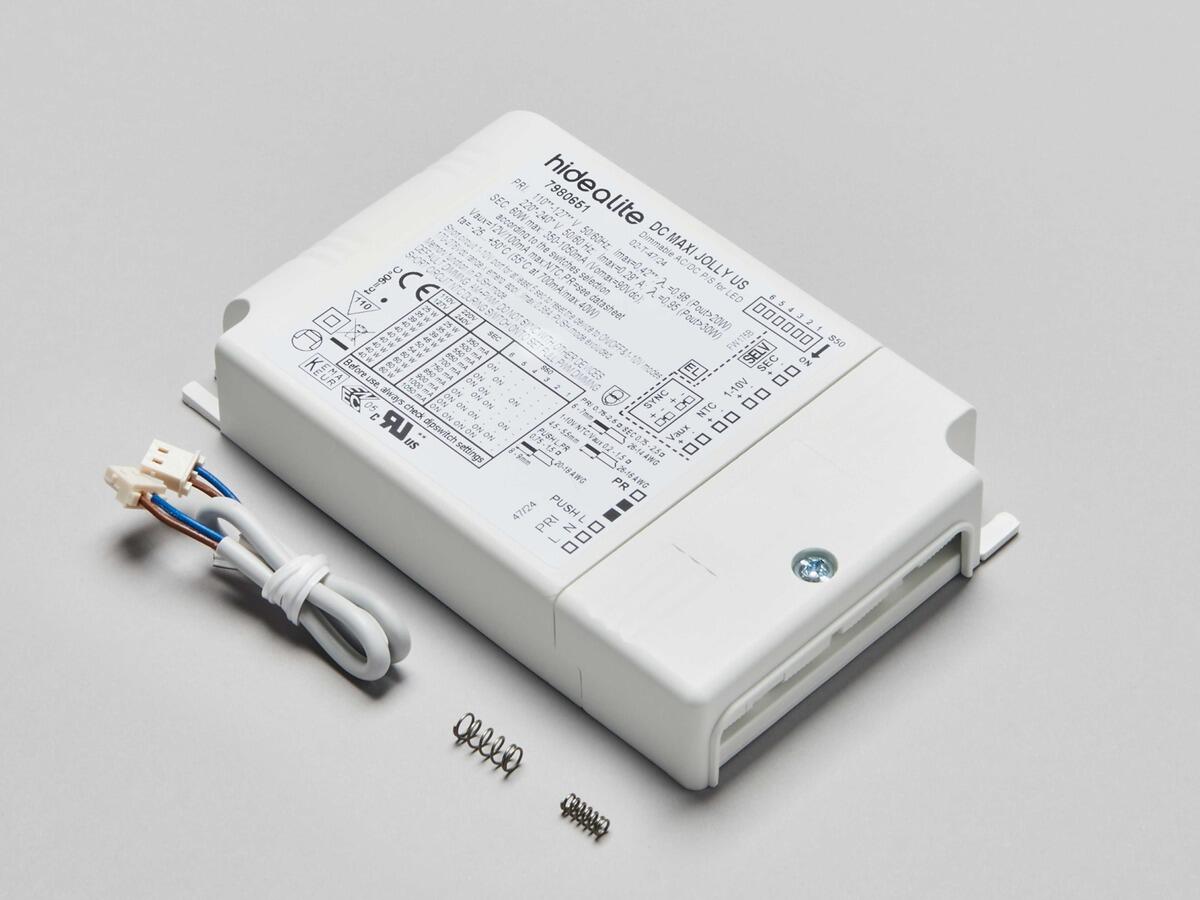

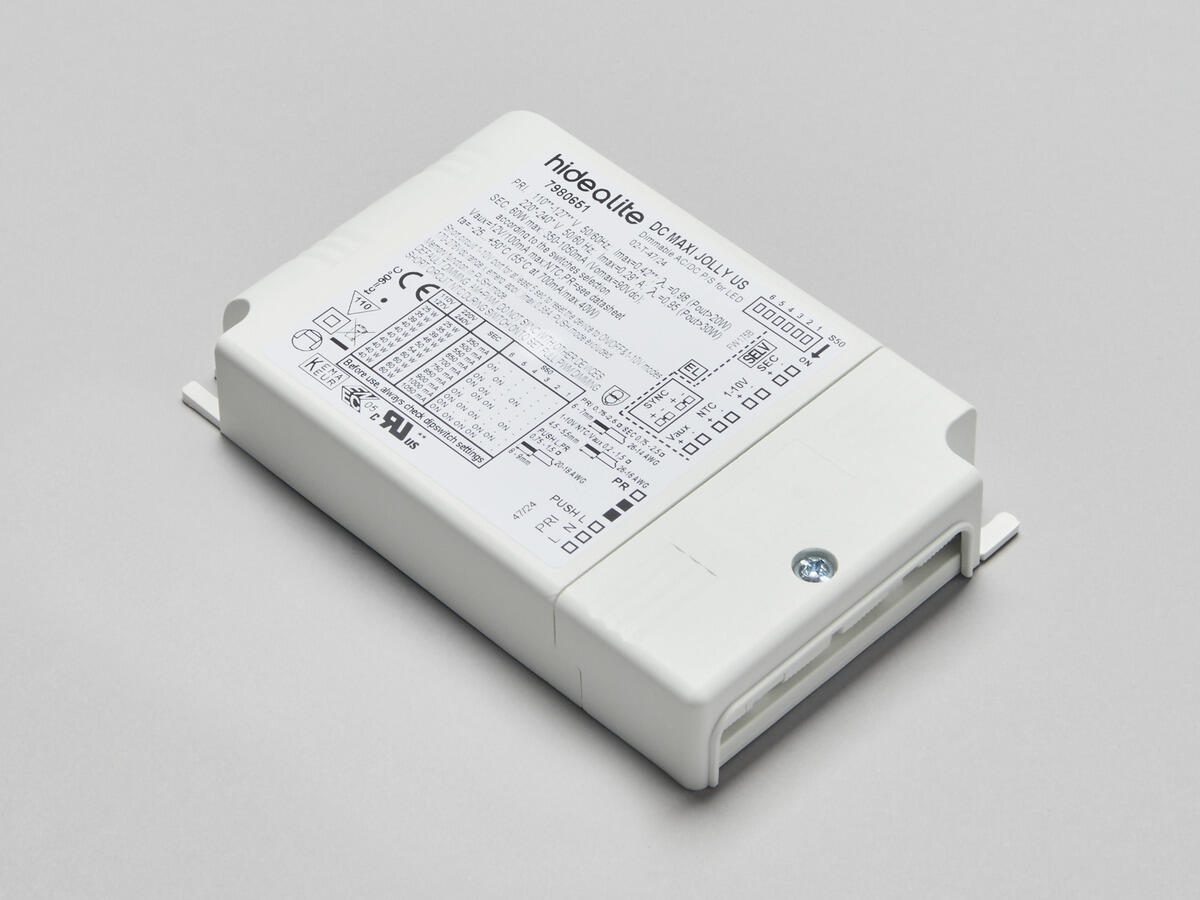

Jolly Maxi US

Choose with or without Casambi, for wireless control of luminaires
Easy current setting via dip switch, from 350mA to 1050mA
Smart memory function in case of power loss

Jolly Maxi is a LED converter that gives you full control over your lighting. With a simple set-up, it can customise lighting scenarios and operate most types of constant current DC LED light sources, from 350 mA to 1050 mA, and dimming between 0-100%. The built-in dimmer function provides flicker-free light. The Casambi version also has a push input for spring-loaded switches. With Jolly Maxi US and Jolly Maxi US DALI you can link up to 10 units and control them from one or more locations via push-button reset, potentiometer, 1-10V or via bus/KNX system via actuator. A practical memory function means that the device turns on with the last set value after a possible power failure, even via push button.

GTIN	Item Name	Type of Dimming
7392971151496	Jolly Maxi US Casambi	Casambi LR, Push 230V
7392971124155	Jolly Maxi US	1-10V, Push 230V, Potentiometer
7392971124162	Jolly Maxi US DALI	Push 230V, 1-10V, Potentiometer, DALI 2

Description: GTIN 7392971151496

Item Name Jolly Maxi US Casambi

Warranty 5 years
Light Technical Data: Life Time Driver 50 000h/5%

Flicker (PstLM) 0,034

Stroboscopic effect (SVM) 0,022
Technical data: Voltage (type) AC

Voltage Interval (V) 220...240

Voltage Nominal (V) 230

Line Frequency (Hz) 50, 60
Operation and Connection: Dimmable Yes

Type of Dimming Casambi LR, Push 230V

Driver Model Constant Current, Constant Voltage

Driver Type Stand Alone

Driver Manufacturer TCI

Connection (type) Screw Terminals

Connection (mm2) 2x0,75-2,5

Through Wiring No

Strain Relief Yes

Connection Secondary (type) Screw Terminals

Secondary Connection (mm2) 2x0,5-2,5

Secondary Outputs (pair) 1

Voltage Output Interval (V) 2-74

Power Factor ʎ 0,95

Efficiency (%) 92

Leakage current (mA) (at 230 V, 50 Hz, full load) 0,13

THD (%) 10

Power Interval for Catalogue (W) 1-60

Standby Power 0,5

Max. Load Per Output (W) 60

Constant Current (mA) 350, 500, 550, 650, 700, 750, 850, 900, 1050, 1000

Operating Temperature -25…+50

Max. Tc (°C) 90

Dimming secondary side AM

Memory Function Power Failure Yes

Protection Against Short Circuit, Overheating 110°C, Overload

Inrush current (max/time) 10A 200µs

Mains surge protection DM (kV) 4

Mains surge protection CM (kV) 5

Fuse B10 (pcs) 18

Fuse B16 (pcs) 30

Fuse C10 (pcs) 31

Fuse C16 (pcs) 51
Color and material: Material Plastic

Color White
Measurement and installation: Operating Environment Indoor / dry locations

IP Degree of Protection 20

Protection Class II

Installation Built-in, Surface mounted

Fire Safety Marks MM-mark

Approval Marks CE, S, Kema Keur, ENEC 05

Filament Test IEC 695-2-1(°C) 850

Length (mm) 124

Width (mm) 79

Height (mm) 22

Weight (kg) 0,215

Built-in Ø (mm) 85

Jolly Mini

All-in-one converter for LED with built in hybrid dimming (PWM & AM). Able via a simple adjustment to drive and regulate several types of LED light sources, both constant voltage DC (12 and 24V) and constant current DC (250-900mA in 50mA step). Can be controlled from one or more places via a spring-loaded pushbutton, or via a potentiometer, via 1-10V. Slimmed format for simple installation in 1 ½ boxes or together with the luminaire in Spot Guard Gles (7392971120195).

Jolly Mini DALI

All-in-one converter with built in hybrid dimmer for controlling with standard DALI2 interface (1-100%). Able via a simple adjustment to drive and regulate several types of LED light sources, both constant voltage DC (24V) and constant current DC (250, 350, 400, 450, 500, 550, 600 and 700 mA). Simple setting of output current with dip switch. Slimmed format for simple installation in 1 ½ boxes or together with the luminaire in Spot Guard Gles. Connects to 230V.

Jolly DIN

All-in-one converter for LED with integrated PWM dimmer for easy installation directly on a DIN track for large projects and small renovations. Able via a simple adjustment to drive and regulate most types of LED light sources for constant current DC (200 mA to 800 mA in steps of 50 mA). 1-10 units can be linked controlled from one or more places via a spring-loaded pushbutton, via a potentiometer, 1-10V or bus/KNX system via actuator. Comes with 15 cm synch cable.

Jolly Maxi US

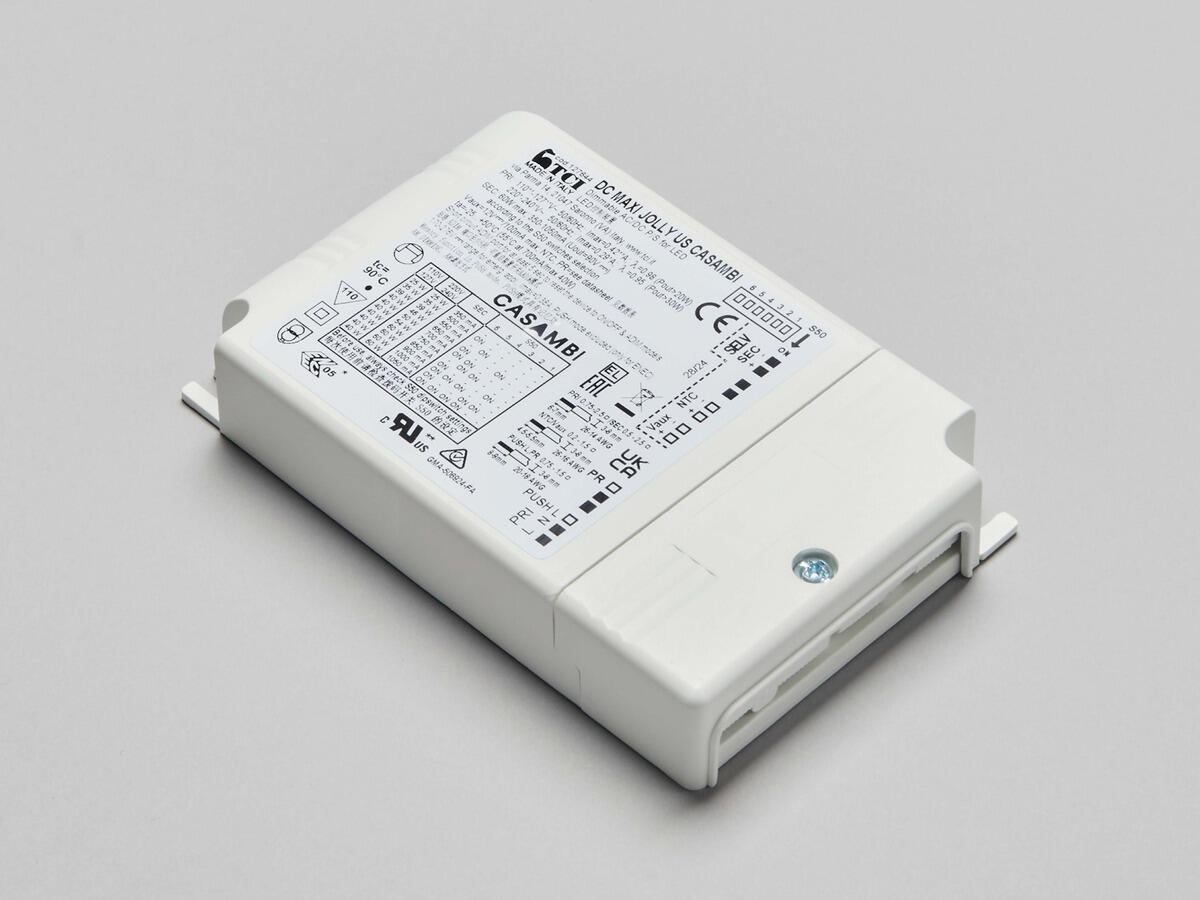

Jolly Maxi US Casambi
